Cooling Object Holes
Set the default values that will be used when creating Cooling Object Holes.

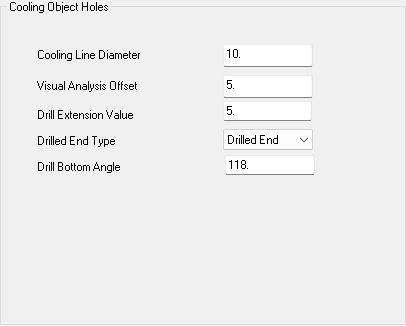

The Cooling Object Holes dialog is displayed.
|
Option |
Description |
|
Cooling Line Diameter |
Set the default diameter used when the Cooling Channel function creates cooling channels around the lines. |
|
Visual Analysis Offset |
This parameter determines the proximity of the cooling channels to other components when running Analyze Conformal Cooling Circuit which analyzes and marks different conformal cooling circuits in different colors to check their integrity, and also marks specific portions of cooling circuits that have designated roles. |
|
Drill Extension Value |
Set the distance to drill past the meeting point of two cooling channels. |
|
Drilled End Type |
Set the default from flat, drilled, and ball end. |
|
Drill Bottom Angle |
When Drilled End is selected, set the angle to define the tip shape. |
|
