NC Preferences > Contours Attributes
Access: Invoke this function from one of the following locations:
-
Select the Preferences button
from the Quick Access Toolbar, or -
Select Tools > Main Tools > Preferences from the menu bar.
Navigate to NC > Contours Attributes.
Define the colors of auxiliary contours created by NC procedures.

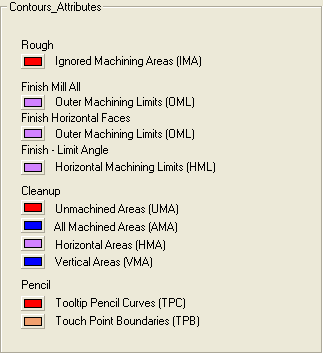

The Contours Attributes dialog is displayed.
Interaction
-

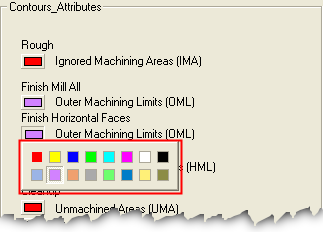

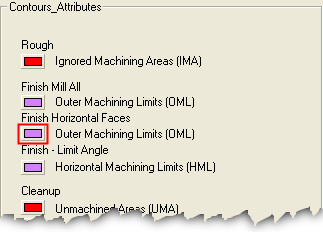

Change the color of an auxiliary contour by clicking the appropriate color box. A palette of preset colors is displayed.
|
|
|
-
Select the required color from the palette.
-
Press the appropriate approval option.
|
