Process Manager : Pen Size of Cutter Motions

Access: Open this function from one of the following locations:

Select NC Process Manager from the toolbar.
Select View > Pane > NC Process Manager from the menu bar.

Changing the pen size of cutter motions can be easily done within the Process Manager. For each procedure, the pen size of the cutter motions is displayed.

Changing the pen size

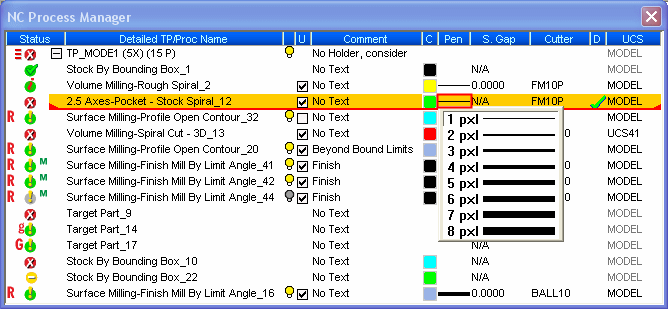

Click the appropriate pen line. The pen size dialog is displayed with the current pen size highlighted.

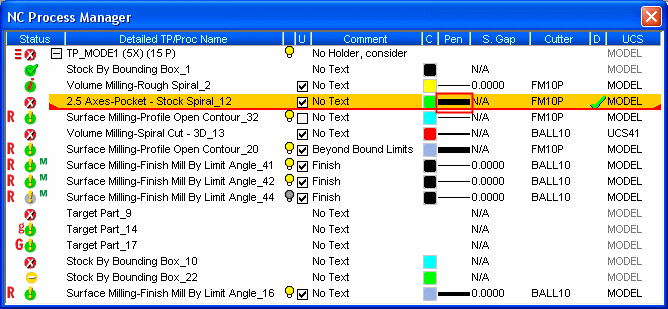

Select the desired pen size. The new pen size is displayed in the Process Manager.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
