Process Manager : UCS

Access: Open this function from one of the following locations:

  • Select NC Process Manager from the toolbar.

  • Select View > Pane > NC Process Manager from the menu bar.

Changing the UCS can be easily done within the Process Manager. For each procedure, the UCS name is displayed.

Changing the UCS

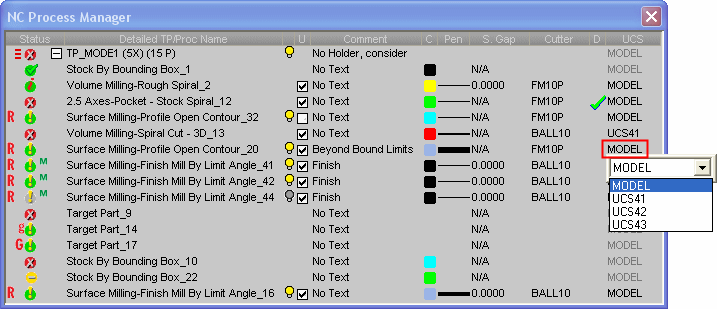

  1. Click the appropriate UCS. The UCS dialog is displayed with the current UCS highlighted.

  1. Select the desired UCS.

Note: If you change the UCS of an executed procedure (a procedure with a status flag in the Process Manager), the procedure will be considered suspended and receive a status flag. You must execute the procedure again .

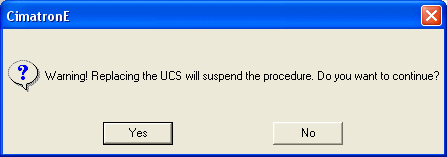

If you change the UCS of an executed procedure, the following warning message is displayed:



Press Yes to continue with the UCS change.

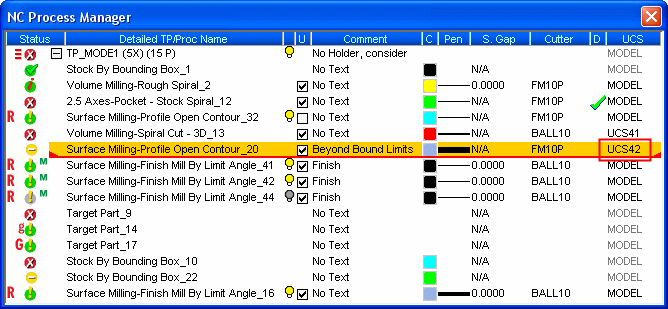

The new UCS is displayed.
Note that the previously executed procedures now have a suspended status flag and need to be re-executed to receive a flag.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
