Saving as a Catalog Part
: Dimensions - Picking
Access: Open this function from the following location:
-
Select Catalog > Catalog Part Definitions > Save as Catalog Part from the menu bar.
-
Double-click an entity or double-click a feature in the Feature Tree to display the dimensions. (This is a similar process to that used when running Attach Name to Entity).

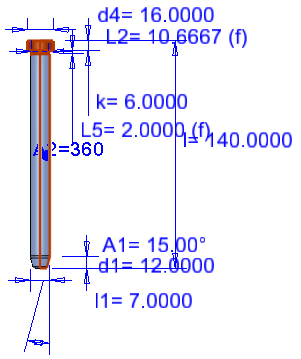

Object dimensions:

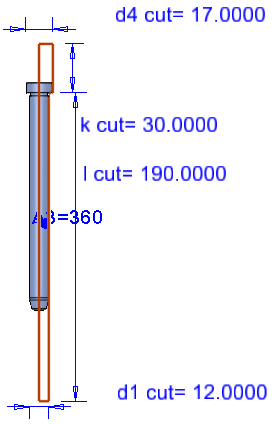

Cutting object dimensions:
If there are dimensions that are already attached to the catalog, these dimensions are displayed in red.
-

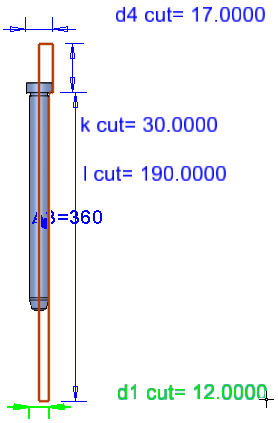

Pick a dimension that you wish to attach to the catalog.
As the cursor floats over a dimension, the dimension is highlighted.

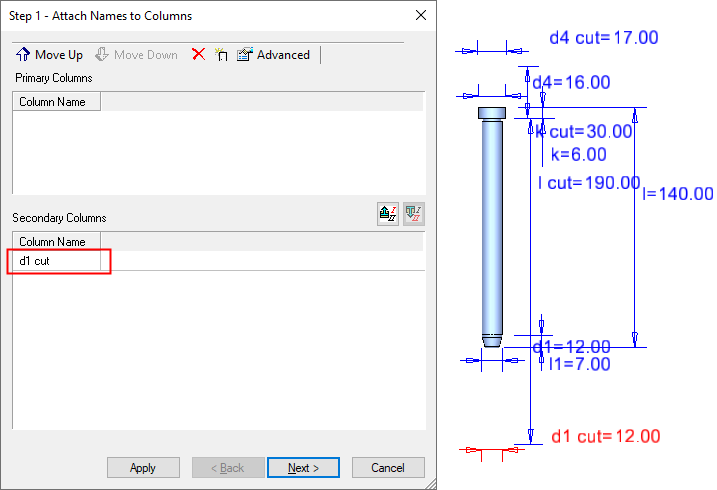

When you pick a dimension, the following occurs:
-
The dimension is displayed in red.
-
The default dimension name is added to the Attach Names to Columns dialog in the Secondary Columns section.
-

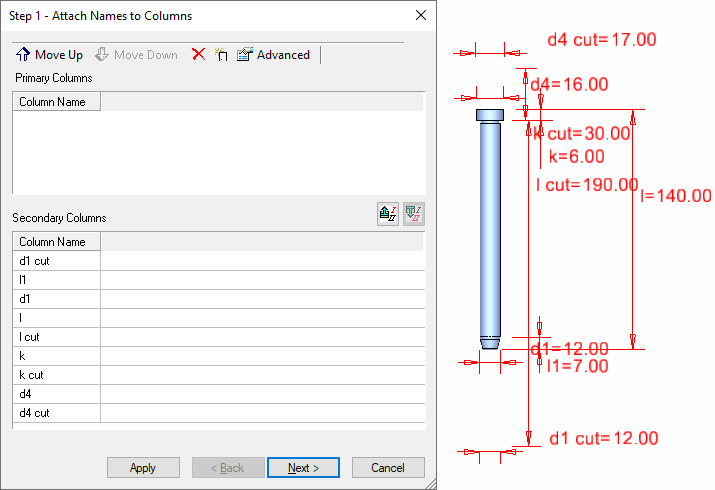

Pick the remaining dimensions to be added to the catalog.
To remove a dimension from the Attach Names to Columns dialog, either re-pick the dimension in the graphics area or select the dimension in the Attach Names to Columns dialog and click the Delete button
.
|
