UCS (Electrode / NC Electrode): Set UCS at Holder's Active UCS

Cimatron provides the option to reset the active defined Electrode/NC Electrode UCS as the holder's active UCS. This is especially useful in cases where the UCS has been previously defined using the Electrode UCS/NC UCS function before a holder has been added. This option allows the automatic reset of the current active UCS to the holder without the reconstruction of previous steps in the Feature Tree.

The example below shows the before and after results of using the Set UCS at Holder's Active UCS option.

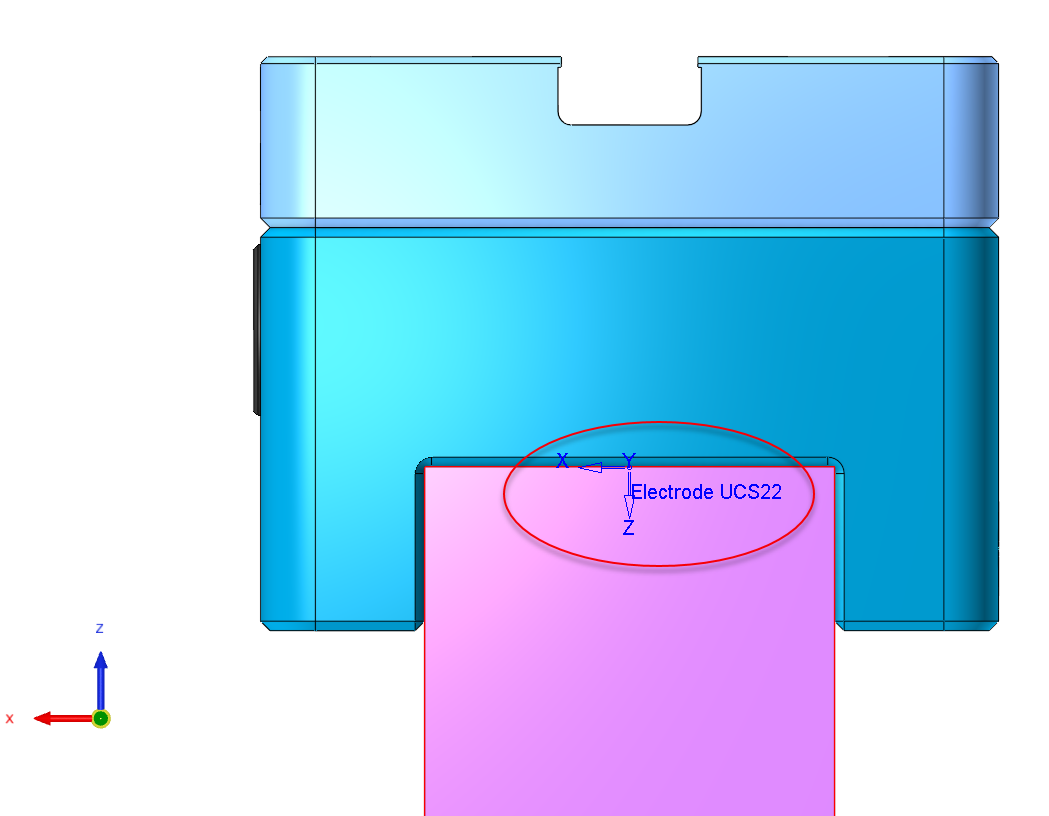

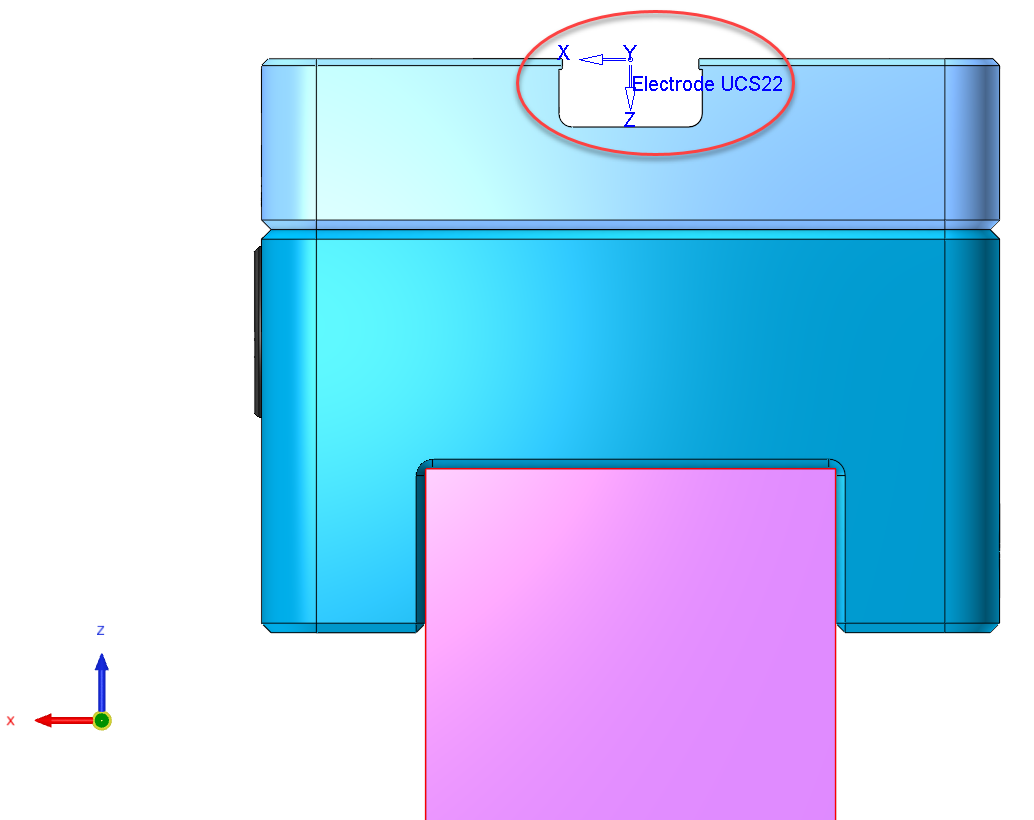

Before: The active Electrode UCS is located in the top of blank position of the electrode. After: The active Electrode UCS is set to the holder's active UCS.

General Interaction

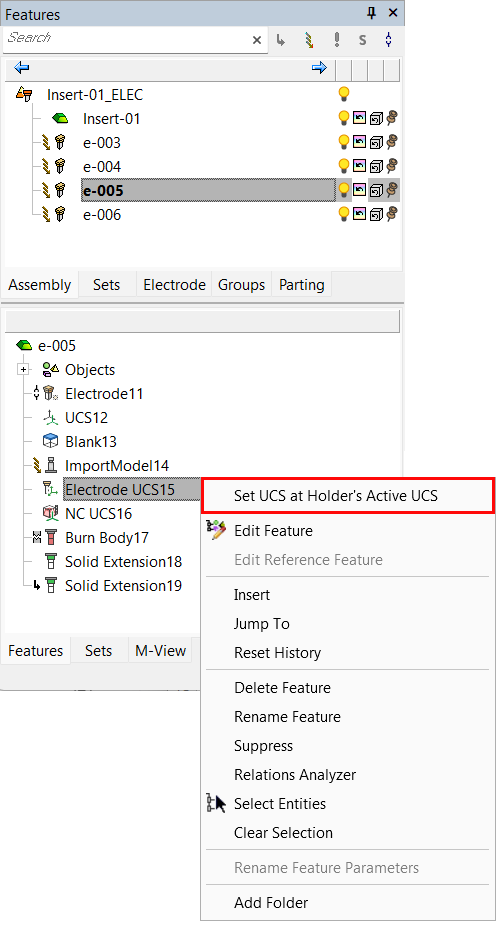

  1. To use the Set UCS at Holder's Active UCS option, navigate to the Feature Tree at the lower Tree Pane and right-click on the Electrode UCS or NC Electrode UCS feature.

  2. Select Set UCS at Holder's Active UCS. The UCS is now set as the holder's active UCS.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
