Slot Size Analysis

Access: Open this function from the following location:

Select Analysis > Main Tools > Slot Size Analysis from the menu bar.

Analyze the slot sizes of a body. This checks for pockets and ribs that have a height to thickness ratio larger than a defined threshold value (to find slots that are long relative to their thickness).

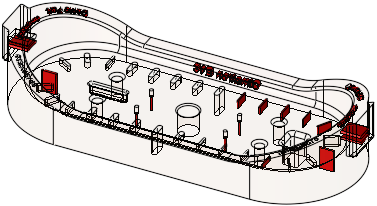

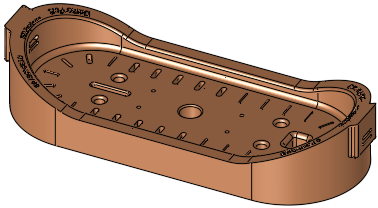

Before the slot analysis:	After the slot analysis:

General Interaction

The following is the Feature Guide for Slot Size Analysis.

Tip: You can open the Feature Guide at any time by right-clicking the mouse in the graphic display area.

Required Step 1 : Pick a B-rep object.

Required Step 2 : Define the height/thickness ratio value and start the analysis.

Detailed Interaction

See Options and Results.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
