Turn to Reference: Reference Dimensions - Deleting

If referenced by other dimensions, a deleted reference dimension is treated as a deleted regular dimension (the client dimension is marked as rerouted, and the Dimension dialog shows the relation highlighted in red).

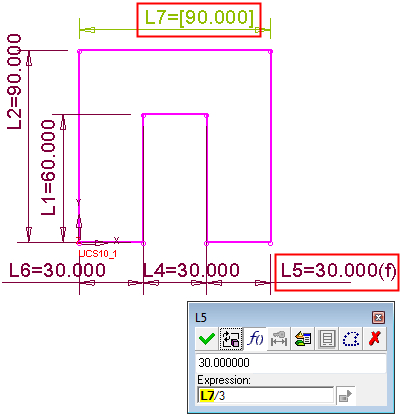

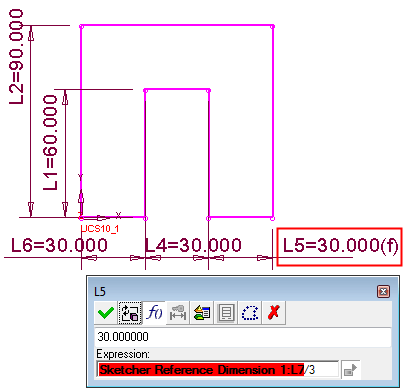

In the example below, the dimension L5 references the reference dimension L7:	In the example below, L7 has been deleted and the Sketcher Dimension dialog displays the relation highlighted in red:
