Face-Curve Fillet : Linear Transition

The following example shows how the results change when the Constant Radius or Variable Radius parameter is selected. (Note that selecting the Variable Radius parameter also displays the Spline Transition / Linear Transition toggle parameter.)

The example below shows Linear Transition. For additional examples, see:

• Spline Transition
• Constant Radius
• Variable Radius - Linear and Spline Transition

Displaying a Linear Transition

1. PickPick(left mouse button) the face and then exitexit(middle mouse button).

2. Pick the line.

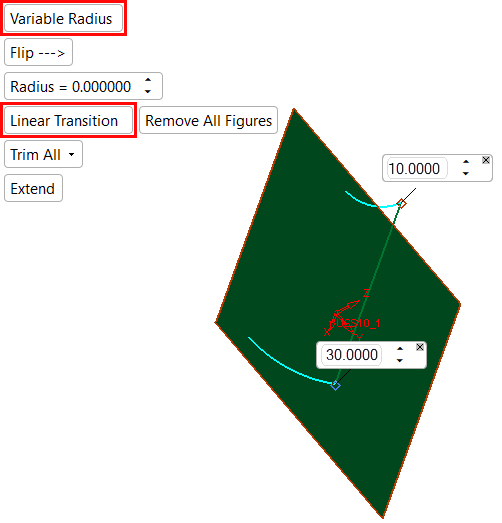

3. ExitExit(middle mouse button). The following is displayed. Ensure is selected and enter a value for the  parameter (if needed). Next, toggle to select the parameter.

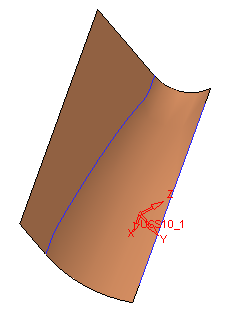

4. Click OKOK or ApplyApply in the Feature Guide to complete the function. The results are displayed.


Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
