Delete Forming Shape from Strip : Options and Results

Access: Open this function from one of the following locations:

Select Die Design > Strip Forming Shape > Delete from the menu bar.
Select Forming Shapes > Delete from the following Die Design Guide: Die Strip Design Guide.

Delete a forming shape from the strip.

Note: You can relocate forming shapes in the strip at any time, as described in Relocate in Strip. You can add forming shapes to the strip, as described in Add to Strip.

The procedure below describes how to select a part or parts in the strip (that you previously added) and remove them from the strip.

Required Step 1

Pick the Component(s) to Remove from the Strip

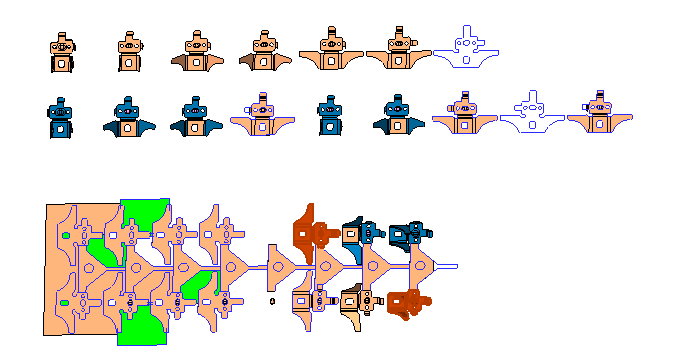

Select the required components to remove. The selected parts are highlighted in red, as shown below.
Click OKOK or ApplyApply in the Feature Guide to complete the function.

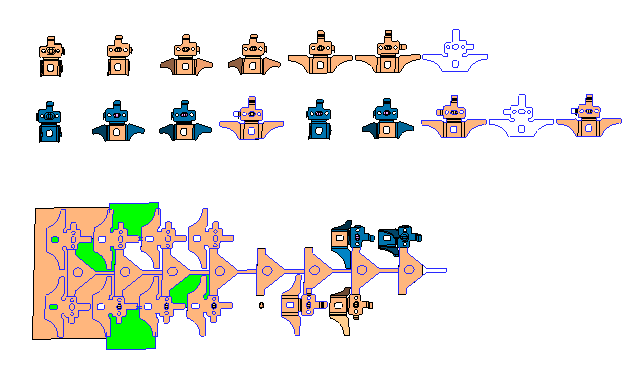

The selected parts are removed from the strip.
