Information
: Options and Results

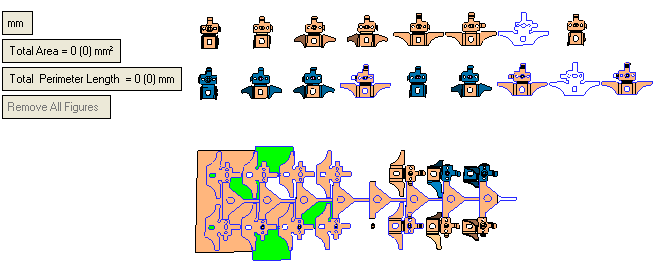

Access: Open this function from one of the following locations:
-
Select Die Design > Tools > Information from the menu bar.
-
Select Information in the Strip Popup Menu or Forming Shape Pop Menu (when in the Strip Forming Shape or Forming Shape environment respectively).
Display tooltip information about the selected entities.
Required Step 1

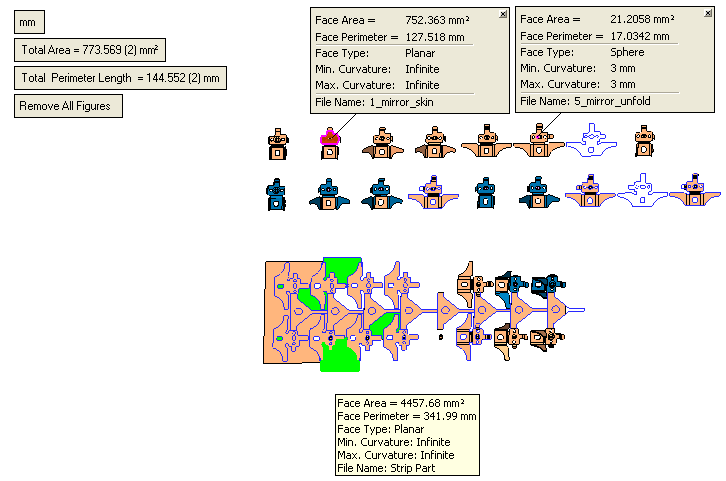

- Pick the faces for which to display the required information, you can also use multiple selections, as shown in the example below.
In addition you may move the cursor over an area to display the tooltip information of a specific face, as shown in the tooltip below.
Multiple Selections
- If required, you can click
at any time to remove all the information,
|
