Tool Trajectory: Cutters Overlap

Horiz. Cutters Overlap
Vert. Cutters Overlap
Cutters Overlap

If multiple cutters are defined for a procedure (in the Cutters & Holders parameter table), additional parameters are displayed in the Tool Trajectory table. These parameters define the type of overlap (if any) between the tool pass of one cutter and that of another cutter.
These parameters are Horiz. Cutters Overlap, Vert. Cutters Overlap and Cutters Overlap.
The options that are available for these Overlap parameters, depend upon the procedure and the settings of other parameters.

These Overlap parameters appear in the follow procedures (if multiple cutters are defined): Finish - all types, Cleanup and Pencil.

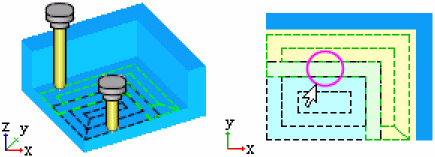

Extra Pass	Machining Method: Finish-SpiralMachining Method: Finish-Spiral Machining Method: Finish-3D StepMachining Method: Finish-3D Step	The tool passes of multiple cutters overlap.

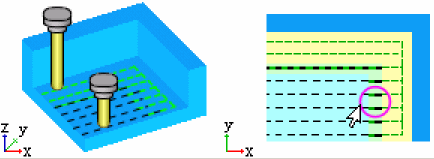

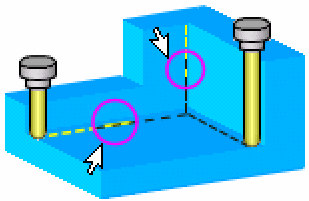

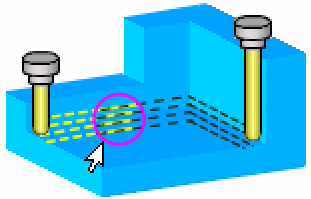

Overlap Machining	Machining Method: Finish-ParallelMachining Method: Finish-Parallel Cleanup: Horiz.Cleanup: Horiz. PencilPencil

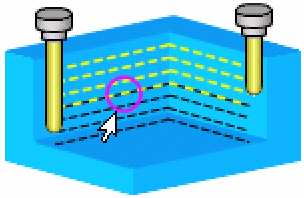

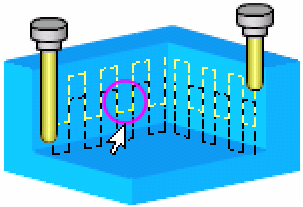

Z Overlap	Machining Method: Finish-LayersMachining Method: Finish-Layers Machining Method: Finish-Variable LayersMachining Method: Finish-Variable Layers Machining Method: Finish-BumpingMachining Method: Finish-Bumping Cleanup: Vert.Cleanup: Vert.

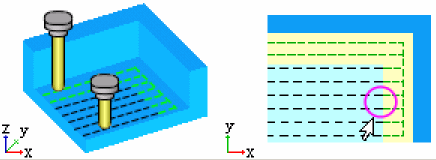

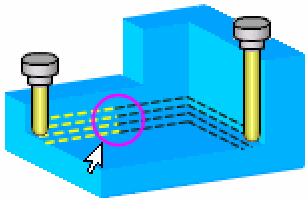

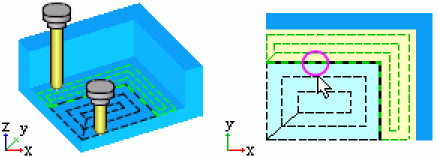

Common Boundaries	Machining Method: Finish-SpiralMachining Method: Finish-Spiral Machining Method: Finish-ParallelMachining Method: Finish-Parallel Machining Method: Finish-3D StepMachining Method: Finish-3D Step Cleanup: Horiz.Cleanup: Horiz.	The tool passes of multiple cutters have common boundaries.

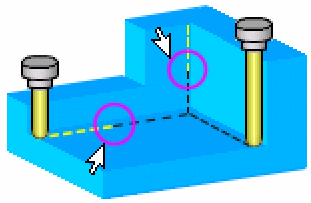

Common Point	PencilPencil	The tool passes of multiple cutters have a common point.

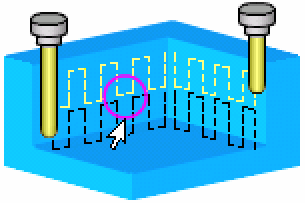

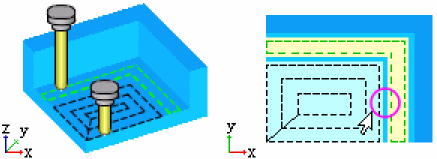

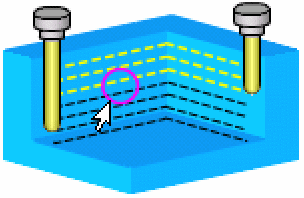

None	Machining Method: Finish-SpiralMachining Method: Finish-Spiral Machining Method: Finish-3D StepMachining Method: Finish-3D Step Machining Method: Finish-LayersMachining Method: Finish-Layers Machining Method: Finish-Variable LayersMachining Method: Finish-Variable Layers Machining Method: Finish-BumpingMachining Method: Finish-Bumping Cleanup: Vert.Cleanup: Vert.	The tool passes of multiple cutters do not overlap.
