Point Cloud to Mesh
Access: Open this function from one of the following locations:
-
Select Mesh > General Tools > Point Cloud to Mesh from the menu bar.
-
Select Point Cloud to Mesh from the Mesh Guide Toolbar.
Create a mesh object from a point cloud.
This is used, for example, when using scanned data for comparing and running deviation analysis with the design model targeting design deformation.
|

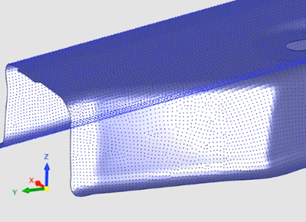

Point cloud: |
Mesh created from the point cloud: |
|
|
|
General Interaction
The following is the Feature Guide for Point Cloud to Mesh.
|
|
|
Tip: You can open the Feature Guide at any time by right-clicking the mouse in the graphic display area.Required Step 1
: Pick a point cloud from which to create a mesh object.
Detailed Interaction
See Options and Results.
