Reset History

Access: Open this function from one of the following locations:

Remove all the features before the selected feature.

This improves the system performance for parts with over 300 features.

Example:

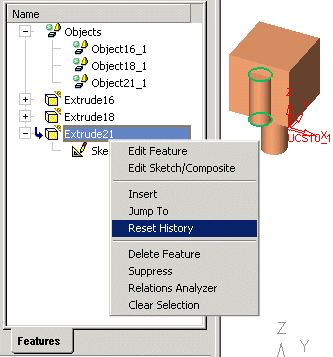

Right-click on a feature in the Feature Tree and select Reset History.

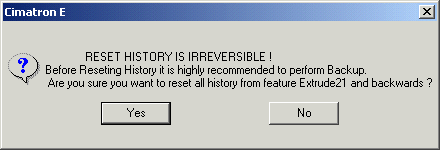

A warning dialog is displayed informing you that you cannot undo this operation.

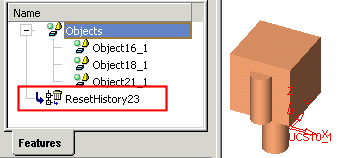

If you select Yes, all features before the selected feature are removed and a new, ResetHistory feature is created.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
