Tool Trajectory Parameters: Remachine
> Rest Milling
Calculates the milling regions based on the Previous Cutter, allowing any cutter combination and milling those regions using the Finish Mill by Limit Angle procedure technology.
Tool Trajectory parameters
The Remachine > Rest Milling > Tool Trajectory parameter table branch enables you to define the level of control over its use and over the display of the parameters in the branch. The following branch options are available: Basic and Advanced - Basic is the default option.

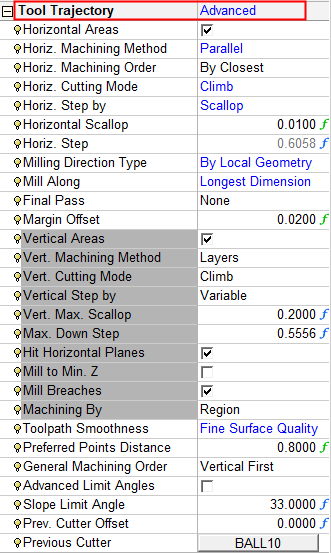

Branch option: Advanced
For a parameter description, click on a parameter in the dialog image below.
Depending on your parameter settings, some parameters may not be available or other parameters may be displayed.
Note: For clarity, all Tool Trajectory branch parameters associated with vertical machining are highlighted in dark gray.
|
|
|

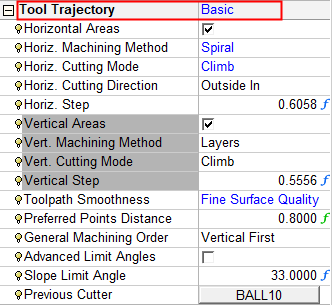

Branch option: Basic
The Basic option is the default option and displays the following parameter and enables minimal control over parameters.
For a parameter description, click on a parameter in the dialog image below.
