Tool Trajectory Parameters: Surface Milling
> Finish Mill All
Mill all areas using either Parallel, Spiral, or Layers machining.
Note: If multiple cutters are defined for the procedure (in the Cutters & Holders parameter table), an additional overlap parameter is displayed in the Tool Trajectory table. This parameter defines the type of overlap (if any) between the tool pass of one cutter and that of another cutter. This overlap parameter is Horiz. Cutters Overlap.
Tool Trajectory parameters
The Finish Mill All > Tool Trajectory parameter table branch enables you to define the level of control over its use and over the display of the parameters in the branch. The following branch options are available: Basic and Advanced - Basic is the default option.

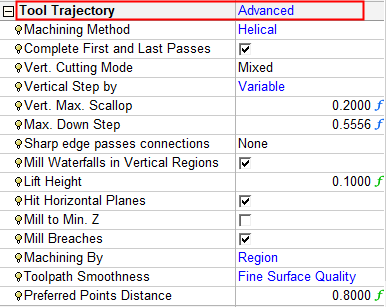

Branch option: Advanced
For a parameter description, click on a parameter in the dialog image below.
Depending on your parameter settings, some parameters may not be available or other parameters may be displayed.
|
|
|

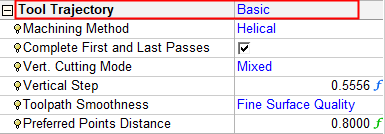

Branch option: Basic
The Basic option is the default option and displays the following parameter and enables minimal control over parameters.
For a parameter description, click on a parameter in the dialog image below.
