Wrap

Access: Open this function from the following location:

  • Select Faces > Modify Faces > Wrap from the menu bar.

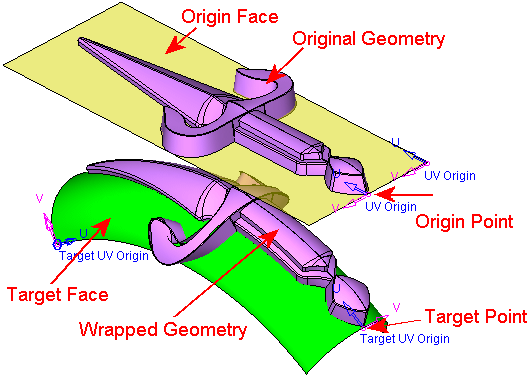

Wrap geometry (faces/wires/curve/points) from an original face onto a target face.

General Interaction

The following is the Feature Guide for Wrap.

   Tip: You can open the Feature Guide at any time by right-clicking the mouse in the graphic display area.

Required Step 1 : Pick the geometry to be wrapped.

Required Step 2 : Pick the origin face and reference point.

Required Step 3 : Pick the target face and reference point and set parameters.

Optional Step 1 : Set the Wrap parameters.

Detailed Interaction

See Options and Results.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
