3D Step

3D Step 1

3D Step is a milling methodology in Finish Mill All that mills the part in spiral-like motions when the distance between the motions is a fixed 3D distance.

1. Load the 3D-Step.elt file into the NC application.
   Here we used the Finish: Mill All procedure in a situation that was not suited to the option.

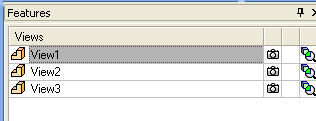

2. Look at the M-Views.

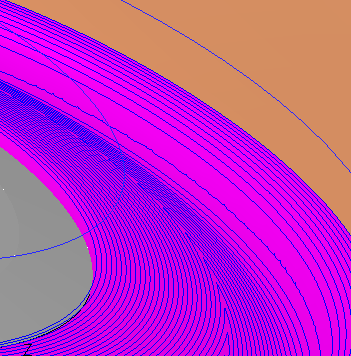

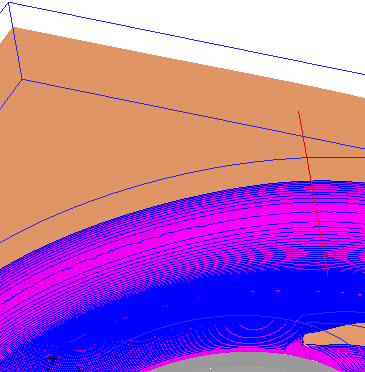

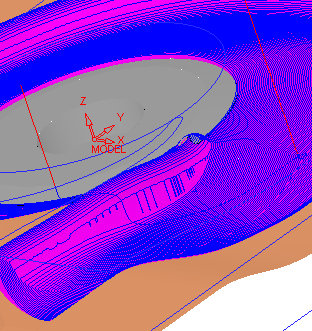

    The walls are too steep for a spiral cut.

   View 1



   View 2



   View 3
