Data To Steel Parameter Exercises

5X Finish Parallel with Lead Angle

1. Re-run the procedure and select the Parallel 5X Lead option from the Machining Method dropdown list.


2. Enter the Navigator.

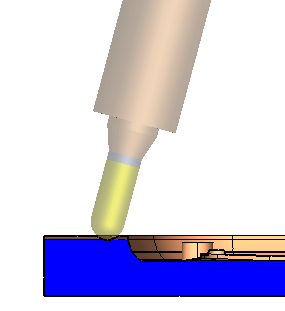

Machining is at a preferred constant lead angle whenever possible. At a point that the constant lead angle may cause a gouge, the tool gradually straightens. When the tool has passed the obstacle, it gradually returns to the original lead angle.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
