Assembly Mirror - Step 2
-

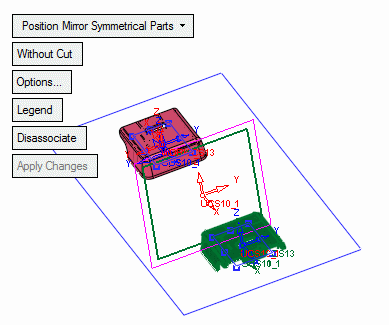

Select the previously created plane.
-
Accept the default option and click OK.

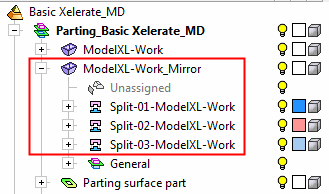

Switch to the Parting tree. Note that the Split direction attributes were copied together with the part.
|
|
|
|
