Cimatron Tutorial
Click here to see this page in full context

Data To Steel

Xelerate Mold Project

Mirror the Local Parting Face

  1. Activate the Parting assembly. Click Assembly \ Copy > Assembly Mirror.

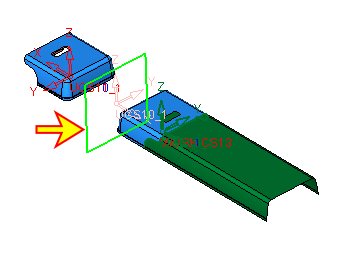

    Select the Local parting surface part as indicated by the arrow in the following image:

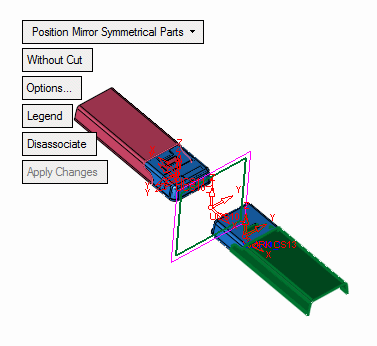

  2. Select the mirror plane.
    Click OK.



Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
