Data To Steel Xelerate Mold Project

Parting Surface Part

Main Parting Surface Part (PSP)

One Parting surface part can be created while loading a work part, as we already performed in this exerciseexercise.

This mold is composed of a cavity plate as an active part in the fixed side and an insert (composed of the model and a mirror model) in the movable side.

In multi-cavities, we recommend you create two types of parting surface parts:

Main: The parting surface that usually holds the outer boundary of all instances. This parting surface part will be placed on the main assembly UCS of the parting assembly.

Local: The parting surface that is common to all or some of the instances (or their mirror parts). This parting surface part will be placed on the UCS of one of the instances.

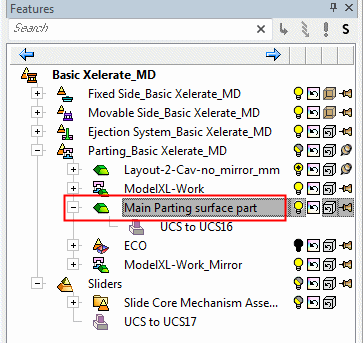

1. Change the name of the previously created Parting Surface Part to Main Parting Surface Part.
