Mixed and Climb Final Pass
Use this option to reduce air motion (mixed mode in most of the passes) but still maintain the climb (conventional) cutting condition in the final pass (or pre-final pass).
To maintain the climb cutting condition, the final pass (or pre-final pass) may be split into a few sections and the climb cutting will be kept in each section. Therefore, we'll see jumps through the air from one section to the other.

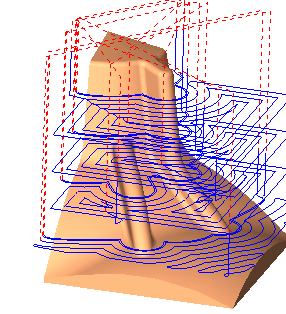

View the number of approach and retract motions in the climb milling.
-

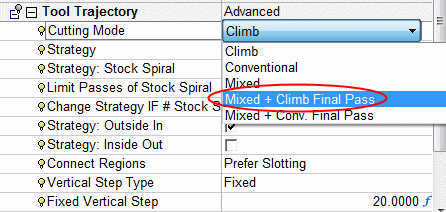

Rerun the procedure. Change the Climb mode to Mixed + Climb Final Pass.
-
Save and calculate.
-
Click Navigator.

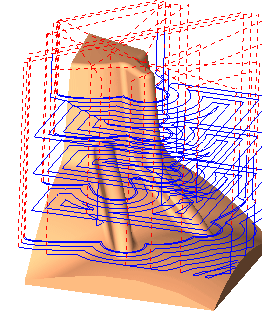

Jump to the last layer. Notice that the tool is moving in Climb mode in the final two passes.
