Shank and Holder Advanced Step 5
-

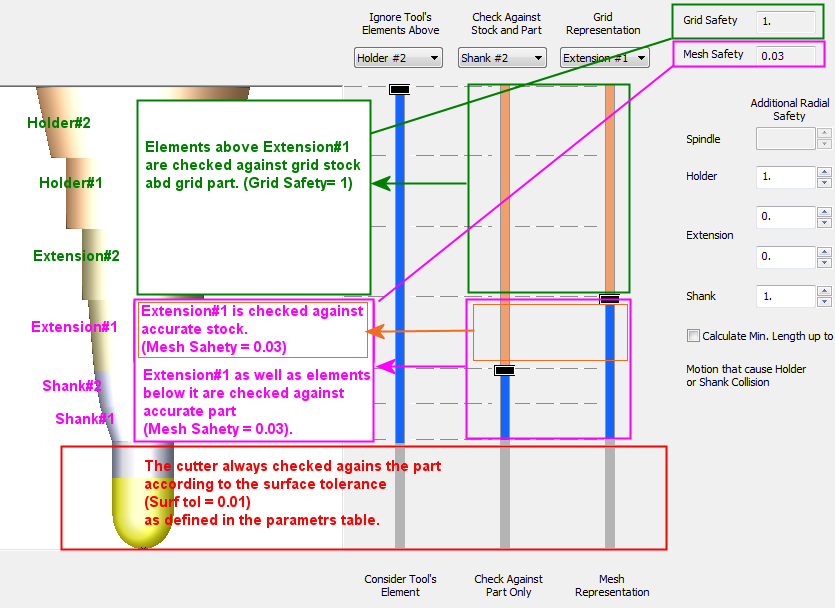

Drag the third slider to Extension#1.
-
Let’s analyze the current status:
THE LOWER RED RECTANGLE:
The cutter is always checked against the part, according to the surface tolerance defined in the Parameters Table.
THE MAGENTA RECTANGLE:
Extension#1 is checked against both stock and part with accuracy of mesh safety value. Mesh Safety = 0.03. Shank#2 and Shank#1 are checked against part only with accuracy of mesh safety value. Mesh Safety = 0.03.
THE UPPER GREEN RECTANGLE:
Elements above Extension#1 (which are in our case: Extension#2, Holder#1, Holder#2) are checked against both stock and part with accuracy of Grid safety value. Grid Safety =1
