Shank and Holder Advanced Step 6

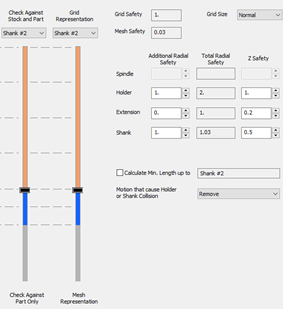

1. Drag back third slider to Shank#2.

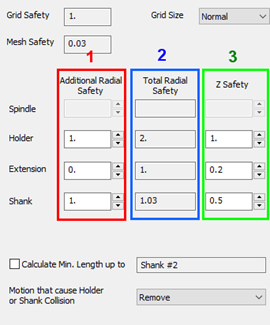

2. Notice the 3 safety parameters:


   1. Additional Radial Safety (1) is the additional greed or accurate safety the user may add to the default values.

   2. Total Radial Safety (2) is the actual radial safety and is derived from both the additional value and the Grid/Mesh safety value. Elements that are checked against grid representation get the Grid safety value, and elements that are checked against accurate stock get the Mesh Safety value.

   3. Z Safety (3)  is the safety value along Z direction.

The toolpath will not get closer than the Total Radial Safety and Z Safety values.
