Cimatron Tutorial
Click here to see this page in full context

Design

Solid

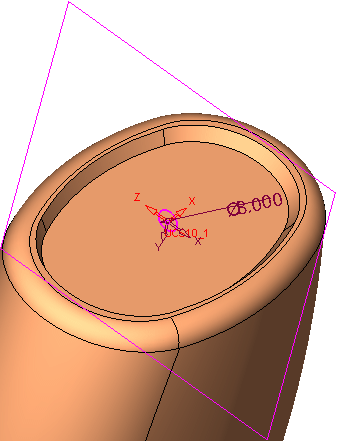

YZ plane

  1. On the YZ plane, Extrude > Remove the following sketch through both sides:

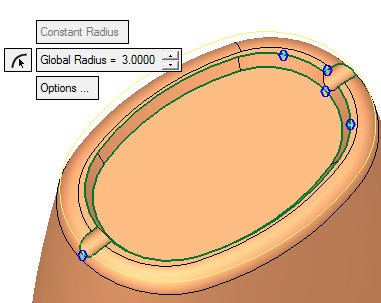

  2. Apply a Global round value of 3 to the following edges:

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
