Cimatron Tutorial
Click here to see this page in full context

Design

Exploded View

Move Components

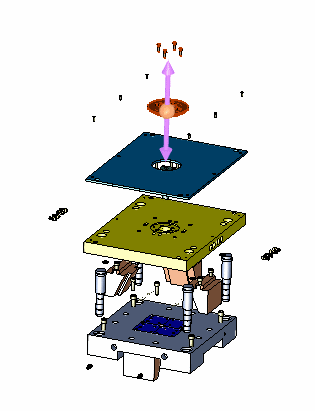

  1. Clear the previous selection and select the Locating Ring (note that the screws are also selected).

  2. Drag the components up the page.

  3. Clear the selection.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
