Reset Position

The locking heels are exploded in the direction defined by the way the user assigned this connection. This direction is not optimal and we will move them later manually.

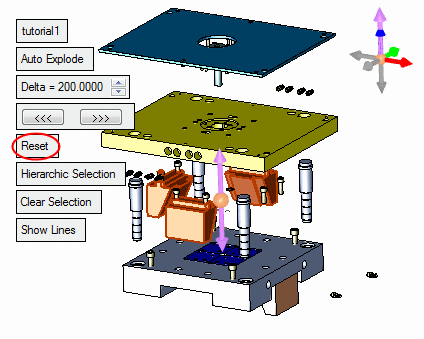

  1. Select the three locking heels and click Reset to return them to their original position.
