3DXML Export

Access: Open this function from one of the following locations:

  • Click the icon from the toolbar.

  • Select File > Export > Export or Export by Pick from the menu bar.

From the Export dialog, select 3DXML from the Files of Type field.

Convert (export) Cimatron files to 3DXML files.

InvokeInvoke (for more, click Access at the top of this Help topic) this data interface operation. To export to a 3DXML file, follow the general export interaction. The parameters specific to this operation are shown below (these are displayed when the Expand button is pressed in the Export dialog).

Notes:

  • Click Expand  to display additional parameters and switch to the Collapse button . Click the Collapse button to hide the additional parameters.

  • PMI entities are not exported.

For a summary of the Data Interface Import/Export formats supported by Cimatron (including their CAD version numbers), see Cimatron's Import/Export Capabilities at a Glance.

Cimatron retains the settings of the data interface (Import/Export) dialog from its last use, including the menu state (expanded or collapsed) and the tab that was opened.

Note: To define default settings for the Advanced parameters, use the Data Interface Preferences. Click the Preferences  icon (at the top right of the Export dialog) to open the Preferences Editor and go to General > Data Interface.

General tab

This tab displays general file conversion parameters.

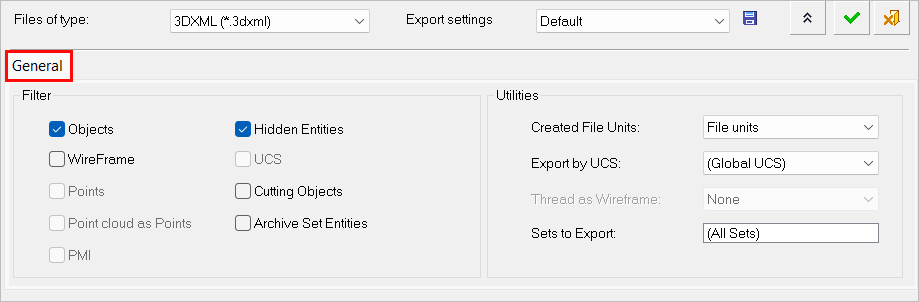

For a parameter description, click on a parameter in the dialog image below.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
