Loft : Between Contours

Access: Open this function from the following location:

  • Select Solid > Creation > Loft from the menu bar.

Create a new object that interpolates a series of sections.

Create a Loft between contours.

Note: The Tangent option is only available if the composite does not have a spline and the faces lie on the composite (all around), have no gaps and only one face is attached to each of the composite curves. For example: if one of the composite curves lies on 2 (stitched) faces - the tangency will not be possible.

Required Step 1 .

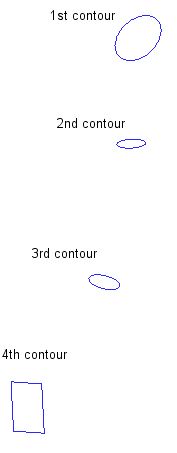

  1. Pick the contours in the order shown below:

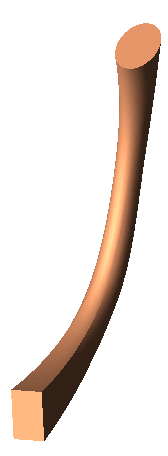

A loft is created between the contours (Free):

For Optional step options, see Between Object Faces.
