DXF / DWG Export
Access: Open this function from one of the following locations:
-
Click the
icon from the toolbar. -
Select File > Export > Export or Export by Pick from the menu bar.
From the Export dialog, select DXF from the Files of Type field.
Convert (export) Cimatron files into DXF or DWG files. Cimatron attributes are mapped to DXF/DWG attributes using specific rules.
UseUse this data interface operation. To export to a DXF/DWG file, follow the general export interaction. The parameters specific to this operation are shown below (these are displayed when the Expand button
is pressed in the Export dialog).
For a summary of the Data Interface Import/Export formats supported by Cimatron (including their CAD version numbers), see Cimatron's Import/Export Capabilities at a Glance.
Cimatron retains the settings of the data interface (Import/Export) dialog from its last use, including the menu state (expanded or collapsed) and the tab that was opened.
Note: To define default settings for the Advanced parameters, use the Data Interface Preferences. Click the Preferences
icon (at the top right of the Export dialog) to open the Preferences Editor and go to General > Data Interface.
Note that when exporting an assembly view to DWG, each instance of a part will turn into a block within the block of the view. Also, when exporting to DXF/DWG, the Advanced dialog for Export Modeling and Export Drafting is different.
Export Modeling
The two tabs, General and Parameters, are described in this section.

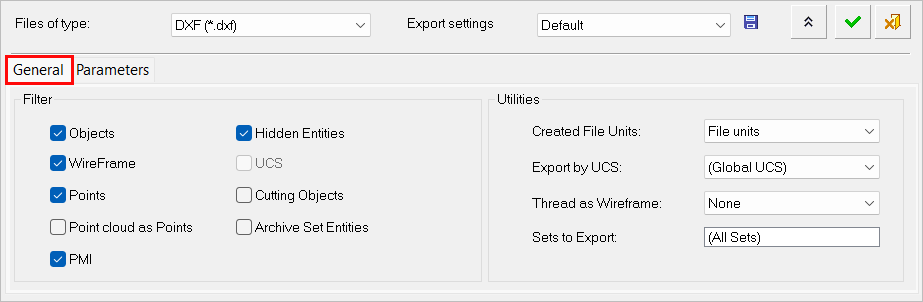

General tab
This tab displays general file conversion parameters. For DXF and DWG, the parameters in this tab are the same.
Note: Click the Expand button at the bottom of the Export dialog to reveal these parameters.
For a parameter description, click on a parameter in the dialog image below.
To display additional parameters, click the relevant tab in the dialog image below.
Parameters tab
For DXF and DWG, the parameters in this tab are different.

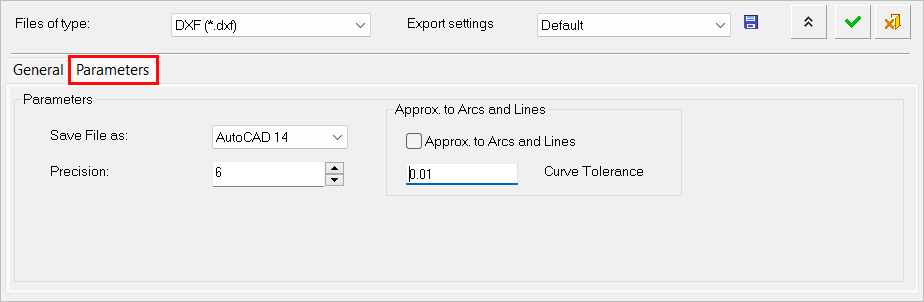

DXF
This tab displays parameters specifically for exporting Cimatron files into DXF files.
For a parameter description, click on a parameter in the dialog image below.
To display additional parameters, click the relevant tab in the dialog image below.

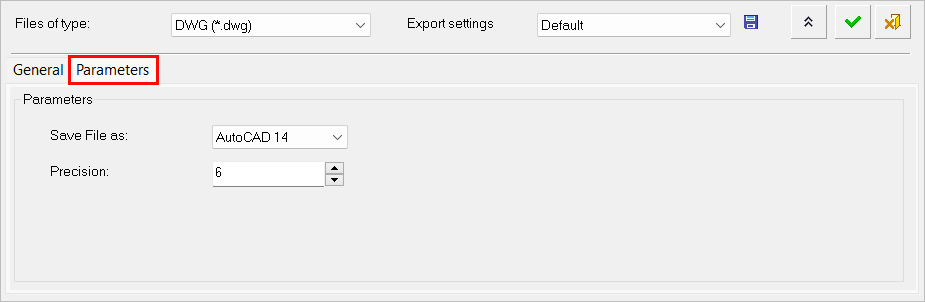

DWG
This tab displays parameters specifically for exporting Cimatron files into DWG files.
For a parameter description, click on a parameter in the dialog image below.
To display additional parameters, click the relevant tab in the dialog image below.
Export Drafting
For DXF and DWG, the parameters in this tab are different.
DXF
This dialog displays parameters specific to exporting drafting files to DXF.
For a parameter description, click on a parameter in the dialog image below.

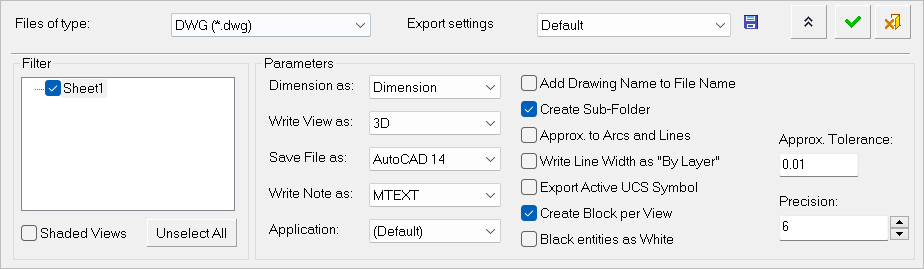

DWG
This dialog displays parameters specific to exporting drafting files to DWG.
For a parameter description, click on a parameter in the dialog image below.
To export a file, follow the general export interaction.
|
