Geodesic
> Utility
Geodesic is a high quality toolpath calculates an even 3D step over complex parts. It includes support for guide curves, undercut and considers the holder to prevent collisions.
Users can use it for 3 axis, 4 axis, and 5 axis toolpaths, typically used for parts that require high quality surface finish such as mold and die cores and/or cases where a continuous toolpath start-to-end without re-entries, is required.

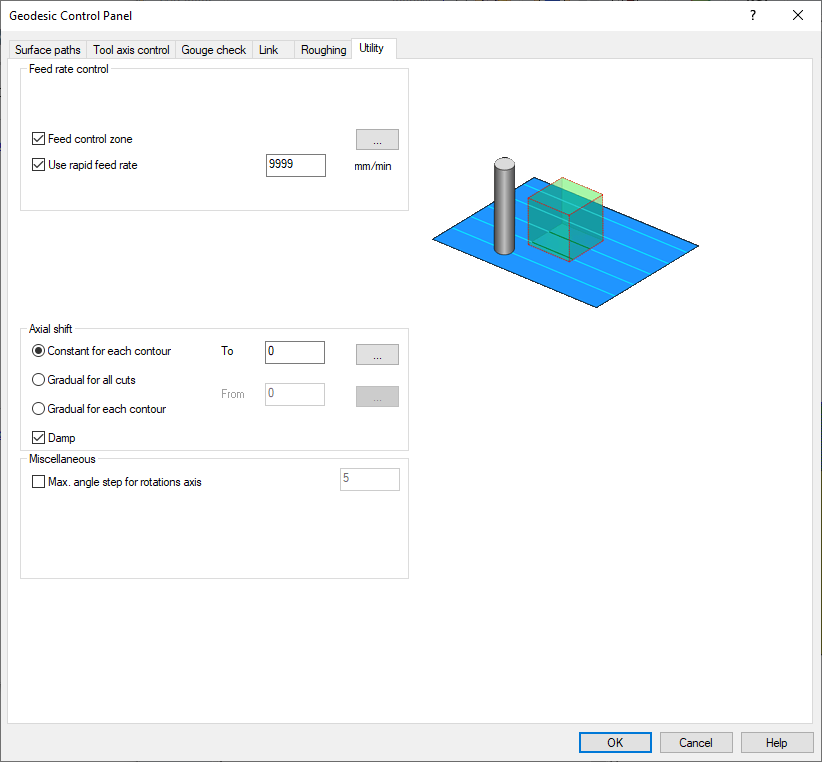

For a parameter description, click on a parameter in the dialog image below.
To display additional parameters, click the relevant tab in the dialog image below.
Tabs
|
