5X Projection > Tool Axis Control

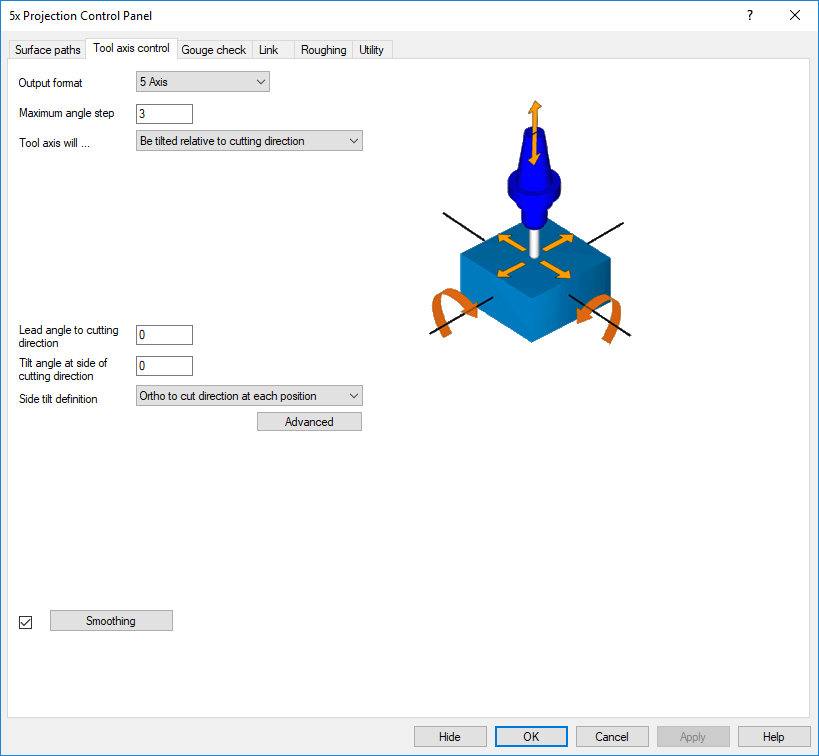

The Tool axis control tab is displayed.
This tab allows you to define the tool orientation relative to the surface normal. You can set machining limit angles and define the contact point between the tool and the surface.
For a parameter description, click on a parameter in the dialog image below.
To display additional parameters, click the relevant tab in the dialog image below.
