Round Corner
: Options and Results
Access: Open this function from the following location:
-
Select Faces > Modify Faces > Round Corner from the menu bar.
Round sharp corners of faces.
Required Step 1
Pick the sharp corners on the face.
Drag a box to select the sharp corners on the face to which you want to perform the Round Corner operation and Exit.

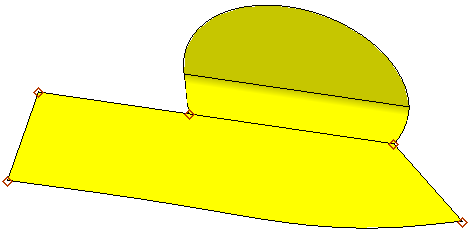

The sharp corners are automatically selected, as shown below:
Required Step 2
Define the radii values.

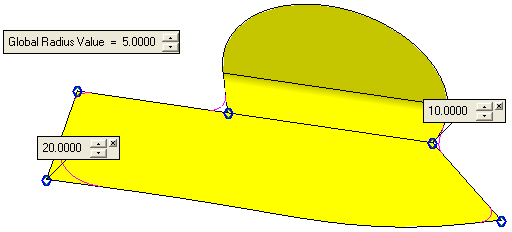

Each selected corner is marked with a blue circle that enables you to set a different radius value for a specific corner (see the Global Radius Value parameter explanation below).
The following parameter is displayed:
|
Global Radius Value |
Set a global radius value for all the sharp corners selected in Required Step 1. To set a radius value different from that of the Global Radius Value for a specific corner, click the blue circle on the appropriate corner to display a parameter label. Set the specific radius value for this corner in the displayed label, as shown below. Different radius values for multiple corners can be set in this way. |
Click OKOK
or ApplyApply
in the Feature Guide to complete the function.

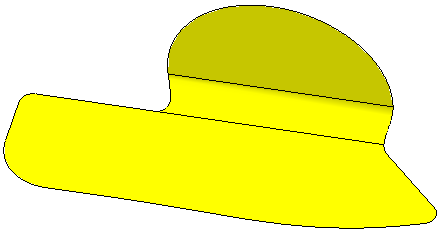

When completed, the Round Corner feature will appear in the Feature Tree as follows:
|
