3 Face Fillet

Access: Open this function from the following location:

  • Select Faces > Create Faces > 3 Face Fillet from the menu bar.

Create a fillet face tangent to three groups of smooth faces.

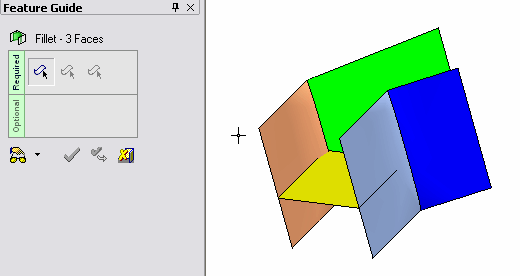

Demo: Press the button below to view a short movie demonstrating the function:

Practice: Press the button below to open Cimatron with a practice ELT file similar to that used to create the movie (if the relevant feature already exists in the ELT file, you can either edit it or delete it and create a new feature).





General Interaction

The Feature Guide for 3 Face Fillet, is shown below:

   Tip: You can open the Feature Guide at any time by right-clicking the mouse in the graphic display area.

Required Step 1 : Pick the first set of smooth faces.

Required Step 2 : Pick the middle set of smooth faces.

Required Step 3 : Pick the third set of smooth faces, set the directions and parameters.

Detailed Interaction

See Options and Results.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
