M-View from a Section Line that Came from an M-View
Access: A view is created under the currently active sheetactive sheet (either double-click the sheet name
in the Drawing Tree or right-click the sheet name and select Activate Sheet). The View Creation dialog can be accessed using one of the following methods:
-
Click
in the toolbar. -
Right-click the currently active Sheet item
in the Drawing Tree and select View Creation. -
Right-click the graphics area and select View Creation.
-
Select Views > View Creation > View Creation from the Drafting menu bar.
A section M-View can be created from a section line that came from the M-View. Once positioned in the drafting sheet, it can be manipulated like a regular view.
Creating the M-View
Create the required section line on the part.
Create an M-View of the section.
Export the part to the Drafting application.
In the Drafting application with the drawing displayed, right-click on the top view in the Drawing Tree and select Edit.

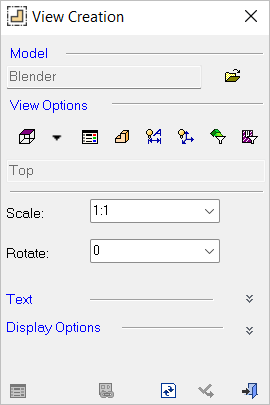

The View Creation dialog is displayed.

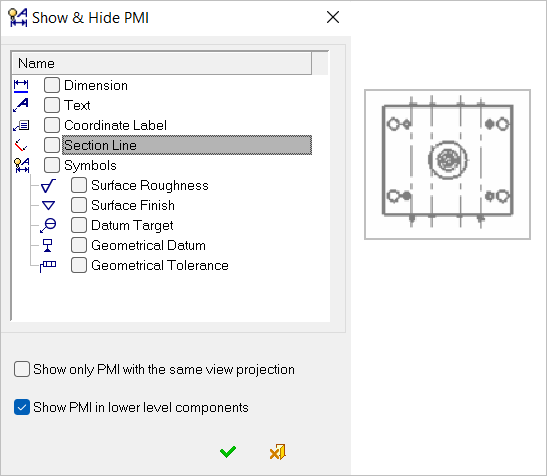

Click Show & Hide Model Symbols
in the View Creation dialog to display the Show & Hide PMI dialog.

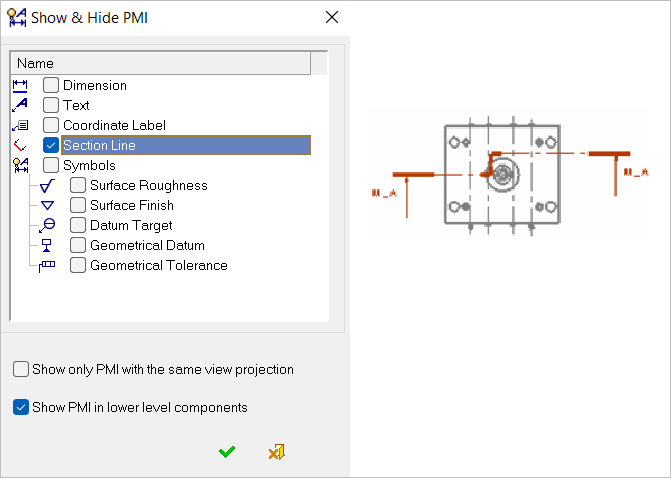

Select Section Line to display the previously created section line and press OK
to return to the View Creation dialog.
Exit the View Creation dialog.
InvokeInvoke the View Creation function again.
Pick the section line and pick the location of the new section M-View. The M-View is displayed.
|
Pick the section line |
Pick the location of the new section M-View |
The section M-View is displayed |
|
|
|
|
|
