Table of Holes: Editing Holes

Access: Open this function from one of the following locations:

  • Click the button in the toolbar.

  • Select Symbols > Tables > Table of Holes from the menu bar.

Edit existing holes in the Table of Holes. This includes editing hole parameters, editing names, attaching different pictures, and more.

Edit existing holes

  1. Display the Table of Holes Editor dialog.

  1. From the Table of Holes Editor dialog, right-click the grey square to the left of the specific row (of an undefined hole). The row is shaded and a popup menu with row editing options is displayed, as shown above.

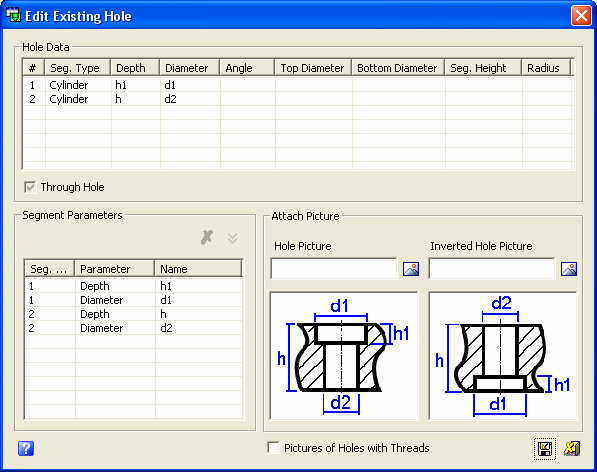

  2. Select Edit Hole from the popup menu. The Edit Existing Hole dialog is displayed, as follows:

This dialog is identical to the Define New Hole dialog which is displayed when defining "undefined" holes. The editing options described there also apply to this dialog.

  1. Edit the parameters as required.

  2. Click the Save Hole button to save your revisions in the Table of Holes.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
