Table of Holes: Table Appearance Changes
Access: Open this function from one of the following locations:
-
Click the
button in the toolbar. -
Select Symbols > Tables > Table of Holes from the menu bar.
Edit the appearance of a Table of Holes (TOH).

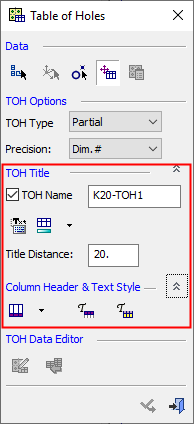

After a Table of Holes has been created, the Table of Holes dialog can be used to change the table appearance, using the highlighted options:
|
|
The following display appearance changes can be performed: |
Table Positioning
You can relocate the TOH by picking a point on the screen to define the new position of the TOH. (The TOH will jump to the picking point).
When the 8 dragging points of the picture are displayed, one of them will always be colored red. This will be the anchor point. By default, the bottom left corner point will be colored red. If you pick one of the other points (or drag the symbol by one of the points), it will have the red anchor point.
|
