Get From Catalog

Access: Open this function from the following location:

  • Select File > Import > Get from Catalog from the menu bar.

Open the catalog, select a catalog part, and create a new copy of it.

Get a component from the Catalog and create a new file

  1. Select File > Get From Catalog from the menu bar.

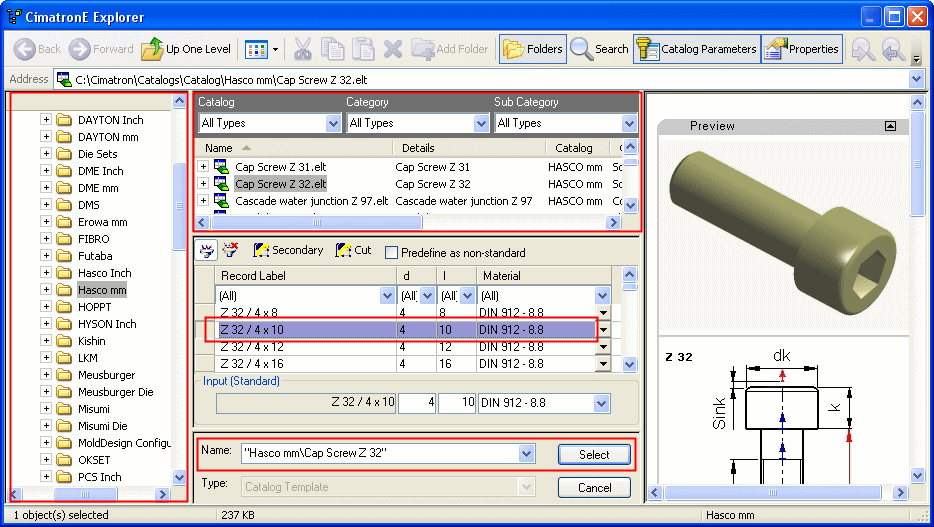

The Cimatron Explorer is displayed showing the Catalogs. Use the Cimatron Explorer tree and the Catalog, Category, and Sub-Category filter options to select a component.

  1. When the Catalog Table for the specific component is displayed, choose one of the record labels and press the Select button.

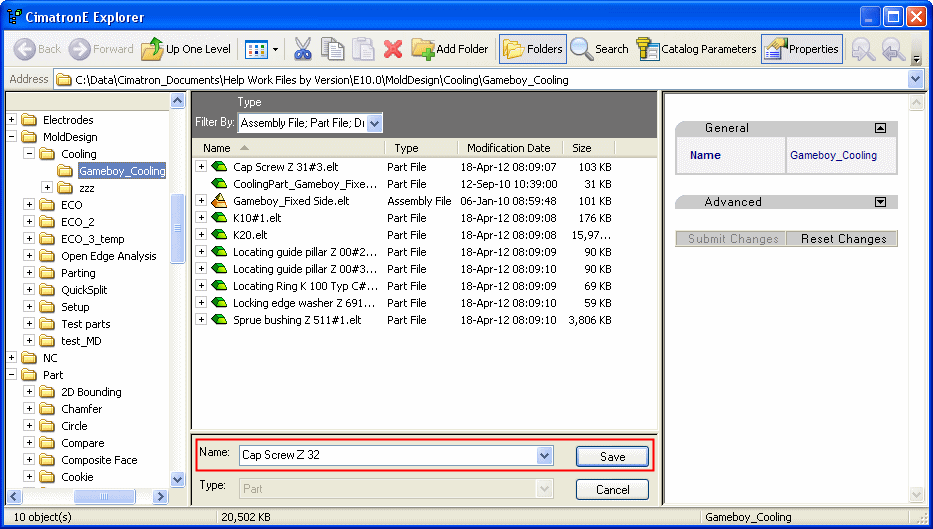

  2. The Cimatron Explorer is displayed showing your files. Browse to the folder where you wish to save the new file and press the Save button.

Notice that the default name for the new file is the same as the component name in the catalog.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
