Loading a Mechanism Assembly
: Adjusting / Suppressing
Access:
Click the
button, or select Assembly
> Add From Catalog from the Assembly
menu bar. The function also appears on the Graphics
Area popup submenu.Select a Mechanism Assembly from the Catalog.
Every part (except the main part) can be suppressed
by clicking on the
button. If
a part is suppressed, this is shown by the
button.
If a parent part is suppressed, its children are also suppressed. Similarly,
unsuppressing a parent will also unsuppress its children.
For example, parts in an suppressed state:

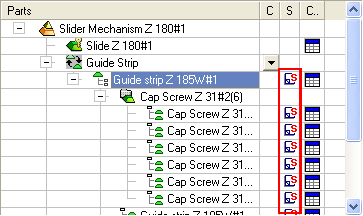

Parts after being suppressed. In this case the parent was suppressed, thereby suppressing its children.
|
