Deform Faces
: Close Gaps on Composite Curve
Access: Open this function from the following location:
-
Select Faces > Modify Faces > Deform Faces from the menu bar.
Modify a face or a group of stitched faces by defining a set of constraints.

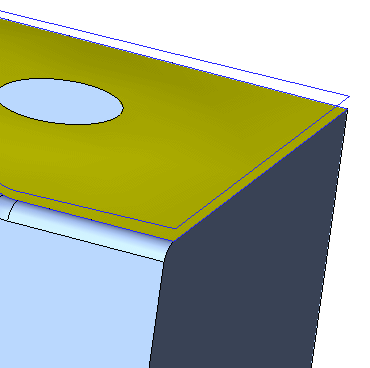

The examples below show the closing of gaps between composite curves of a face.
Required Step 1
-

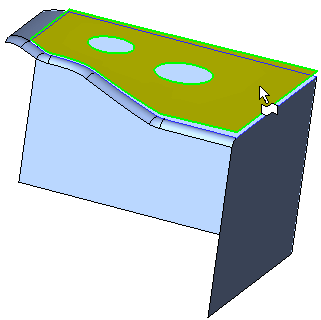

Pick the face to be deformed and <exit><exit>.
Required Step 2

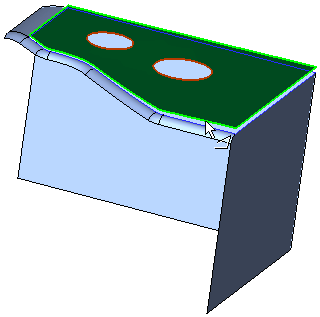

Pick the composite curves whose gap you wish to close:

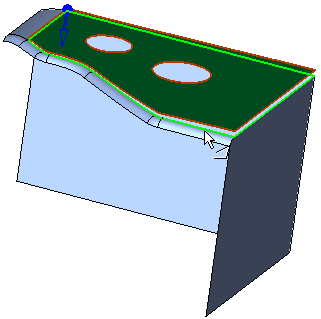

Set the parameters.

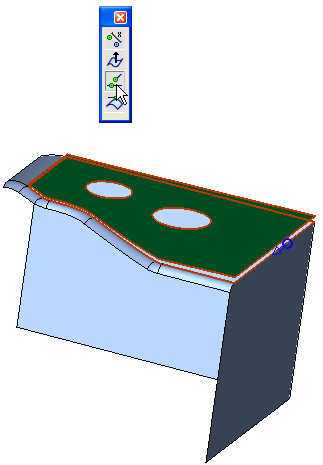

Select the Coincident parameter:
The gap between the composite curves is closed:
Click OKOK
or ApplyApply
in the Feature Guide to complete the function.
When completed, the Deform Faces feature will appear in the Feature Tree as follows:
|
