Move Assembly : Options and Results

Access: Open this function from the following location:

  • Select Die Design > Tools > Move Assembly from the menu bar.

Move an assembly component around.

Required Step 1

Pick the forming shape to move.

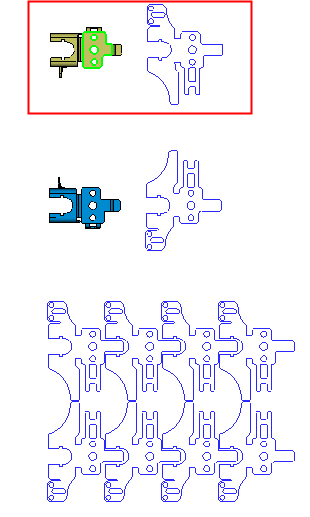

  1. Click the required forming shape row to move,

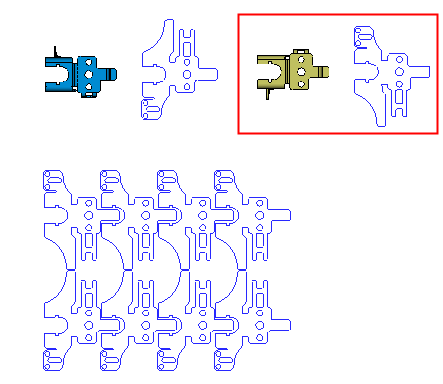

  2. Drag the forming shape to the required location,

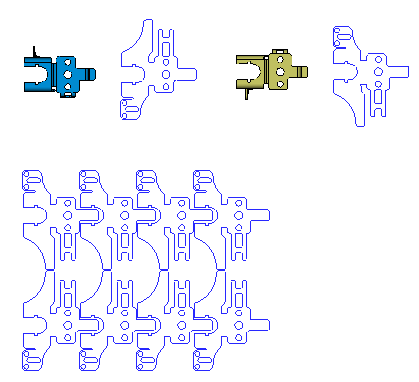

  3. Click OKOK or ApplyApply in the Feature Guide to complete the function.

Additional Example

This option can also be used to move an entire forming shape row, as shown in the example below:

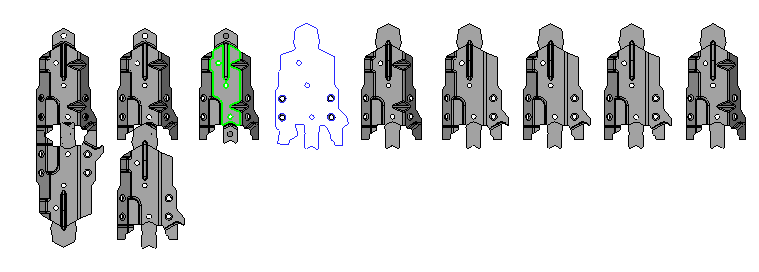

  1. Select an entity on the required forming shape row to move, as follows (see selected forming shape marked in green) :

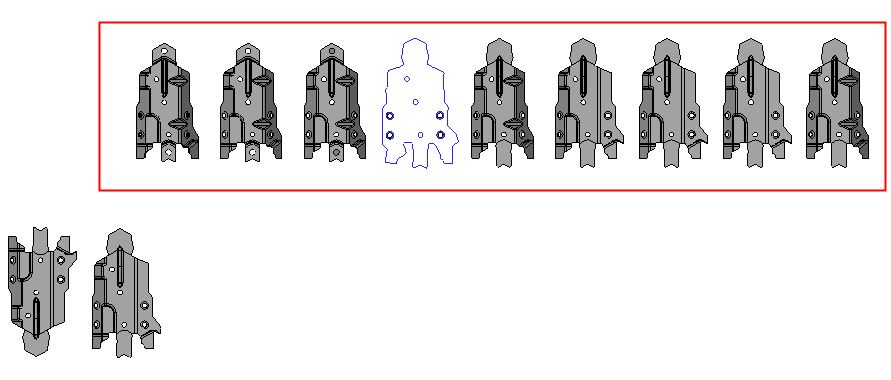

  2. Click and drag the selected forming shape row to the required location (marked in red),

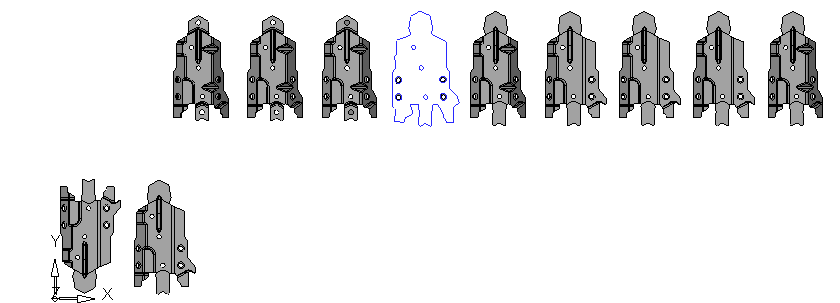

  3. Click OKOK or ApplyApply in the Feature Guide to complete the function.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
