Force Final Pass

When this checkbox is marked , final passes are created even if no stock exists at the wall. This creates a better semi-finish surface for subsequent Finishing procedures.

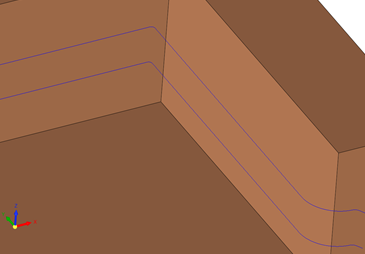

Example:Example:

The blue motions are the Forced Final Passes.

This parameters appears in the Rough Spiral and Volume Pocket procedures (Spiral milling and if Stock is not Ignored) in the Tool Trajectory Parameters - Advanced mode.

Default = OFF. In Basic mode, when hidden, this parameter is considered as OFF.

Force Final Pass does not work when Minimal Stock Width > 0.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
