Die Preferences > Hole Analysis Colors
Access: Invoke this function from one of the following locations:
-
Select the Preferences button
from the Quick Access Toolbar, or -
Select Tools > Main Tools > Preferences from the menu bar.
Navigate to Die > Colors > Hole Analysis Colors.
Define the colors that will be assigned to groups of holes when running the Hole Analysis function.

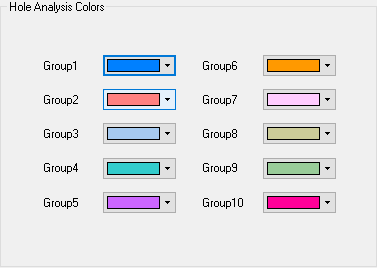

The Hole Analysis Colors dialog is displayed.
Interaction
-
Set the colors that will be assigned to groups of holes when running the Hole Analysis function.
In the Hole Analysis function, the holes are analyzed, arranged into groups according to their shape and size, and then marked by a contour on their circumferences.
The Preference dialog above, enables you to set the colors of these contours according to the groups of holes.
Example hole groups are as follows:
-
Press the appropriate approval option.
|
