Electrode Preferences > Base > Base Rounding

Access: Invoke this function from one of the following locations:

Navigate to Electrode > Base > Base Rounding.

Define whether or not, by default, to round the electrode base and/or to round electrode simple step extensions and set a default round value.

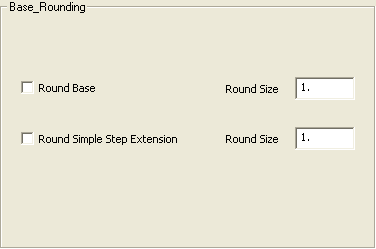

The Base Rounding dialog is displayed.

Interaction

  1. Define the base rounding parameters The units (mm/inch) are as defined for the Preferences.

Round Base

Select the checkbox to automatically round sharp corners in the electrode base. If selected, set a default round size.

The defaults are: Round Base = unchecked, Round Size = 1mm or 0.0625 inch.

Round Simple Step Extension

Select the checkbox to automatically round electrode simple step extensions. If selected, set a default round size.

The defaults are: Round Simple Step Extension = unchecked, Round Size = 1mm or 0.0625 inch.

  1. Press the appropriate approval option.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
