Replace Component

Access: Open this function from the following location:

  • Select Assembly > Component Operations > Replace Component from the menu bar.

Replace a component with another component.

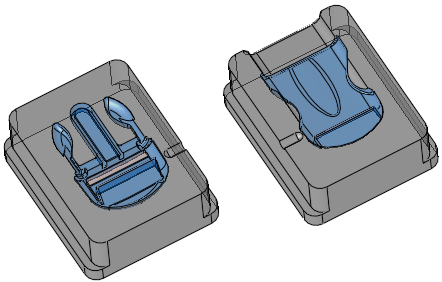

The component on the right is to be replaced:

The replaced component is displayed:

General Interaction

The following is the Feature Guide for Relocate Component.

   Tip: You can open the Feature Guide at any time by right-clicking the mouse in the graphic display area.

Required Step 1 : Select the components to be replaced.

Required Step 2 : Select the replacing component.

Required Step 3 : Set the parameters.

Optional Step 1 : The Cut Manager is displayed; select the parts to be cut. This step is only available if a cutting object exists.

Detailed Interaction

See Options and Results.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
