Simulation Options: Tool Tab

Access: Invoke the Machine or Material Removal Simulator and select Simulation Options from the Simulator Guide.

Control all the parameters and behavior of the simulation mechanism.

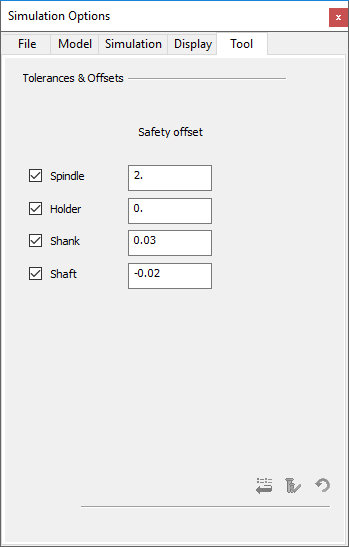

The Tool tab displays the tool safety offsets for the spindle, holder, shank and shaft. See the Safety Offset "Collisions" example.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
