Smoothness
: Options and Results
Access: Open this function from the following location:
-
Select Faces > Modify Faces > Smoothness from the menu bar.
Control the smoothness of the connections between stitched faces.
Required Step 1
-

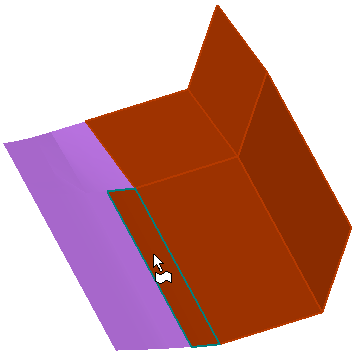

Pick the face(s) to be smoothed and <exit><exit>.

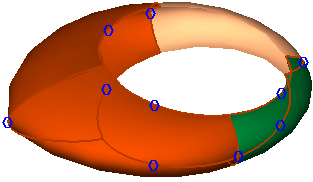

The picked edges are marked with blue dots. Individual edges can be defined as follows:

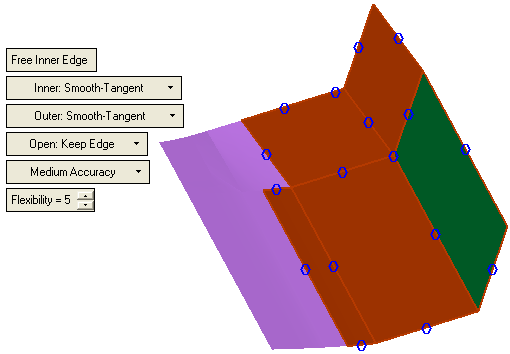

Keep Slopes/Free Slopes/Free Edge: Keep existing slopes/edges or freely modify them.
Tangent: Same tangent on the common edge.
Curvature : Common edge curvature is identical.
The Accuracy parameter defines the quality of the result.
-

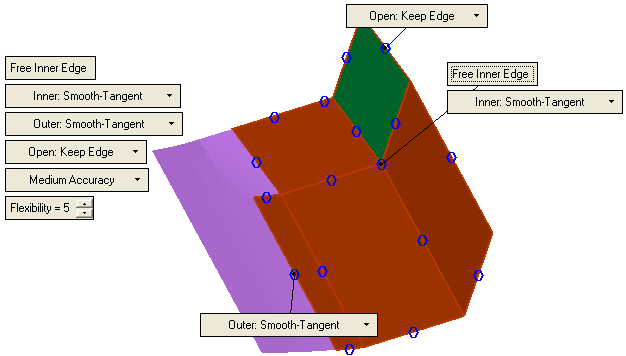

Define the parameters for selected edges. In this example, one Open Edge, Inner Edge and Outer edge are selected.

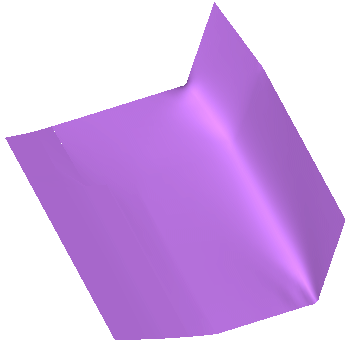

The face edges are smoothed according to edge parameters.

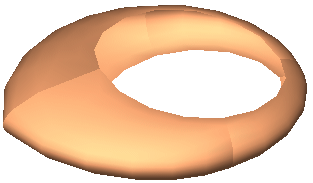

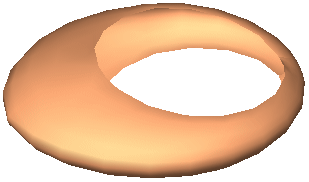

Below is a zoomed-in view of the edges showing the smooth edges:
Click OKOK
or ApplyApply
in the Feature Guide to complete the function.
When completed, the Smoothness feature will appear in the Feature Tree as follows:
|
