Cutter Technology
: Special Cutters
The following Special cutter types are supported by Cimatron:
Countersink
|

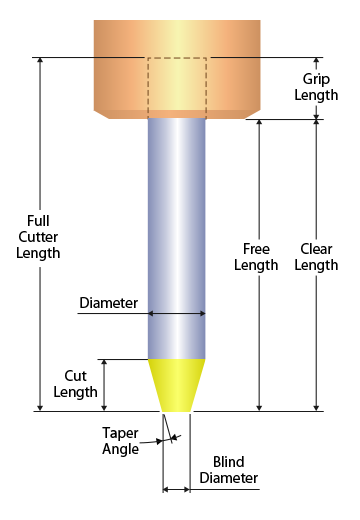

Countersink |

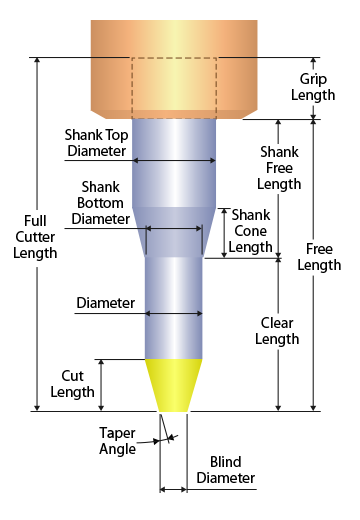

Countersink Shank |

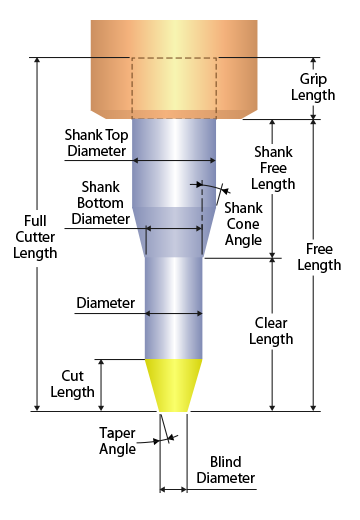

Countersink Shank Angle |
|
|
|
|
Dove Mill
|

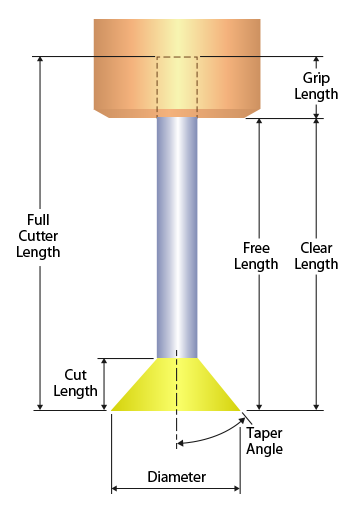

Dove Flat |

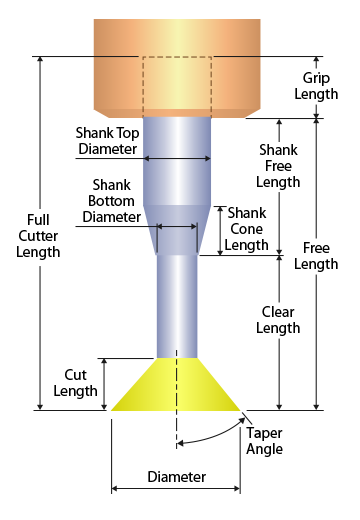

Dove Flat Shank |

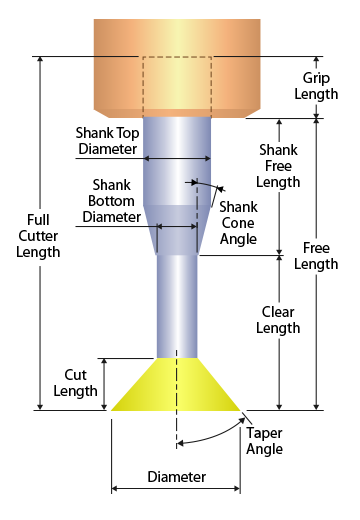

Dove Flat Shank Angle |
|
|
|
|
|

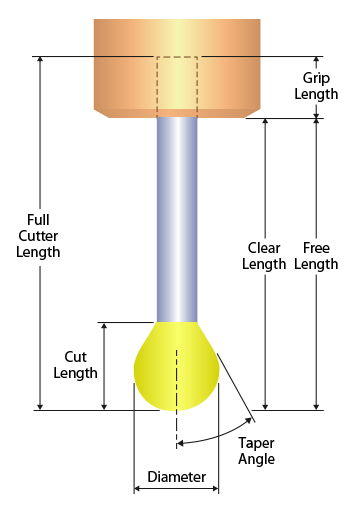

Dove Full Radius |

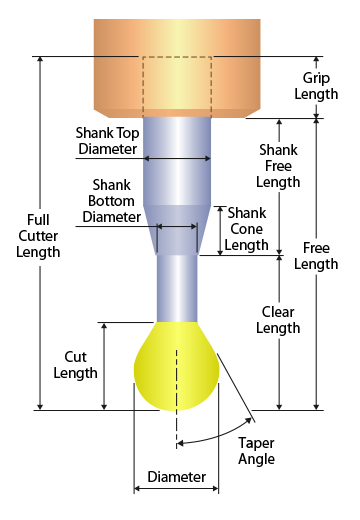

Dove Full Radius Shank |

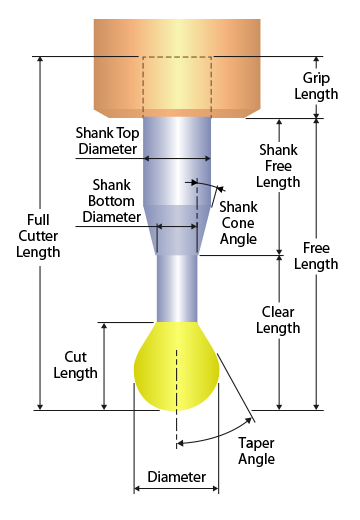

Dove Full Radius Shank Angle |
|
|
|
|
|

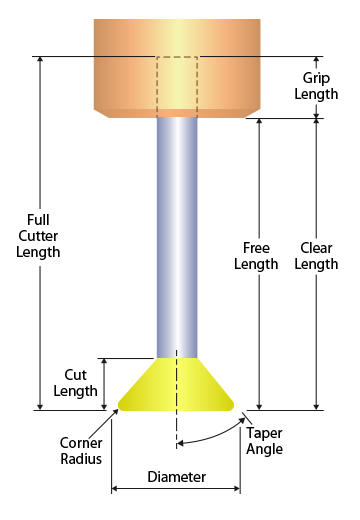

Dove Corner Radius |

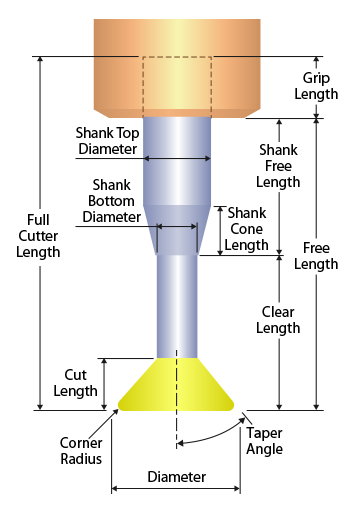

Dove Corner Radius Shank |

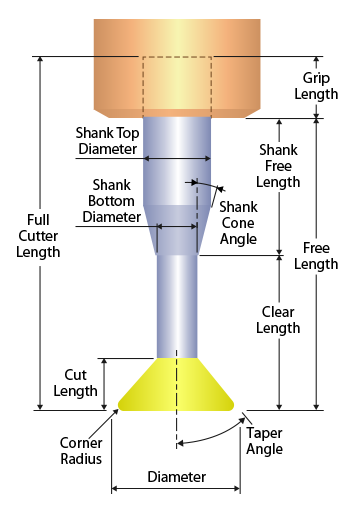

Dove Corner Radius Shank Angle |
|
|
|
|
Lollipop
Notes: Slot Mill and Lollipop Cutter
-
Slot Mill and Lollipop type cutters can be defined in any NC procedure. However, if they are used in procedures other than 5X Production and Local Operations > Local 3X, the NC calculations are based on regular cutters (but the simulation would show the Slot Mill or Lollipop cutter).
-
The use of a Slot Mill and Lollipop type cutter in the Local Operations > Local 3X procedure requires a license. Please contact your local Provider or Reseller.
|

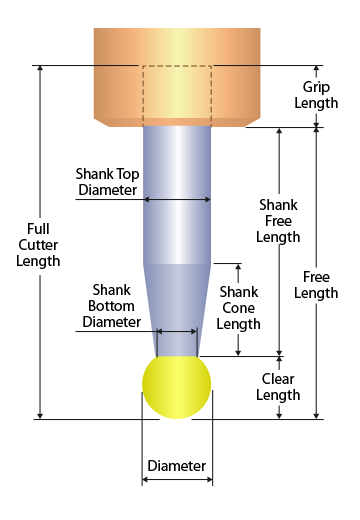

Lollipop Shank |

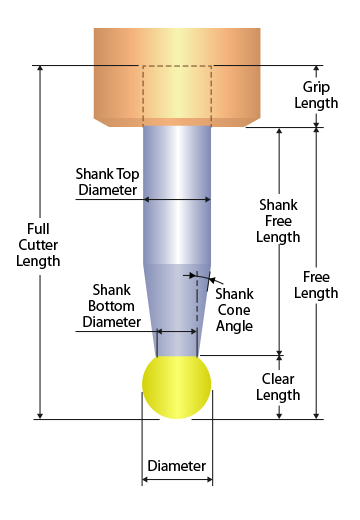

Lollipop Shank Angle |
|
|
|
Slot Mill
Notes: Slot Mill and Lollipop Cutter
-
Slot Mill and Lollipop type cutters can be defined in any NC procedure. However, if they are used in procedures other than 5X Production and Local Operations > Local 3X, the NC calculations are based on regular cutters (but the simulation would show the Slot Mill or Lollipop cutter).
-
The use of a Slot Mill and Lollipop type cutter in the Local Operations > Local 3X procedure requires a license. Please contact your local Provider or Reseller.
|
Slot Mill Flat Shank |
Slot Mill Flat Shank Angle |
|
|
|
|

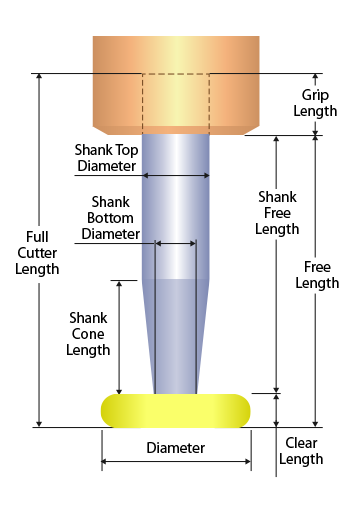

Slot Mill Full Radius Shank |

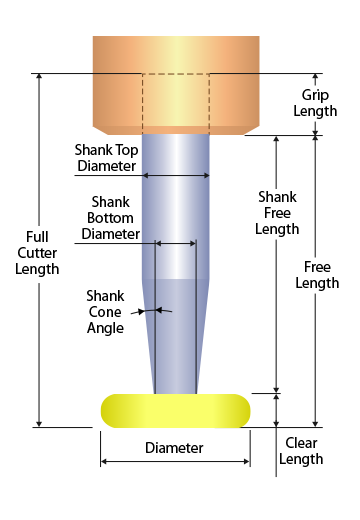

Slot Mill Full Radius Shank Angle |
|
|
|
|

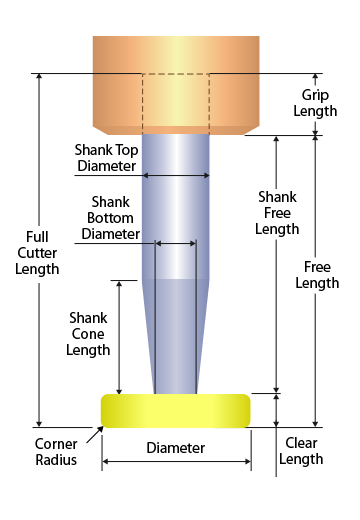

Slot Mill Corner Radius Shank |

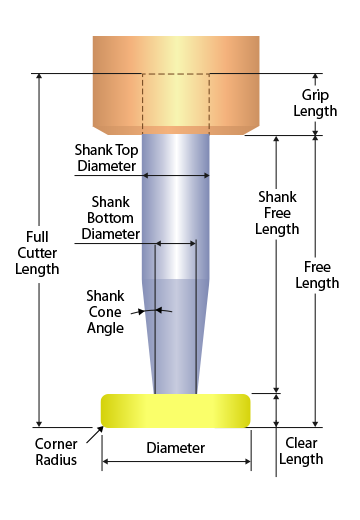

Slot Mill Corner Radius Shank Angle |
|
|
|
Shaped - Special
Unique shaped cutter types are supported by Cimatron; see Special Shaped Cutters:
|
Shaped (Example) |
|
|
Thread Mill
Thread tools can be used for internal and external threading, created by the Automated Drill procedure.
|

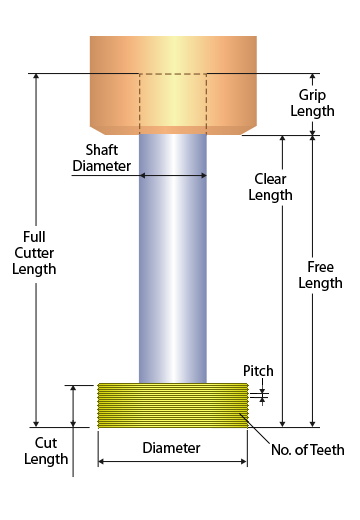

Thread Mill |

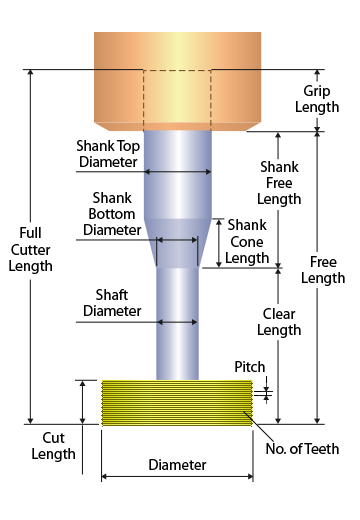

Thread Mill Shank |
|
|
|
|
