Bounded

Access: Open this function from one of the following locations:

Click the button in the toolbar.
Select Faces > Main Tools > Bounded from the menu bar.
Select Parting Surfaces > Bounded from the Mold Design Guide Toolbar or Parting Guide Toolbar.
Select Bounded on the popup menu if a curve, composite or sketch is selected.

Create a face bounded by a contour.

The boundaries can be defined by a sketch, edge, curve or composite curve.

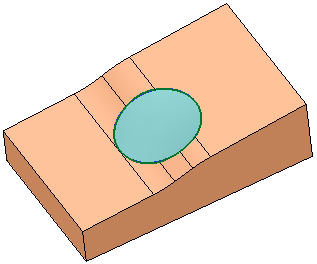

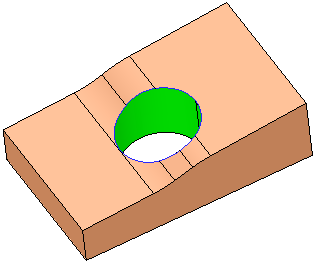

A face with specified boundaries is to cover the gap.	The bounded face is created.

General Interaction

The following is the Feature Guide for Bounded:

Tip: You can open the Feature Guide at any time by right-clicking the mouse in the graphic display area.

Required Step 1 : Pick one sketch, curve, edge, or composite curve.

Optional Step 1 : Pick the reference geometry to manipulate the face.
